JukiMF-7923 Cylinder-Bed Top and Bottom Coverstitch Machine

Also listed as MF7923, MF-7923-U11, MF-7923-U11-B56, MF-7923-U11/B56 and MF-7900 series

A cylinder-bed, 3-needle, 5-thread coverstitch machine for knitwear, T-shirts and sportswear lines. Juki added a new feed mechanism and a differential-feed micro-adjustment to improve seam quality.

Built for Garment factoriesUniform factories

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

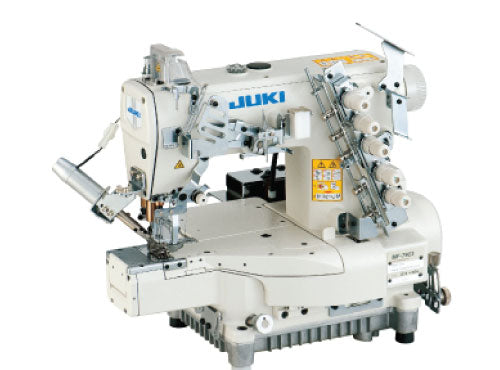

Juki MF-7900 series cylinder-bed top and bottom coverstitch machine, full view
  • 3needles5 threads
  • 0.9-3.6mmStitch length
  • 1:0.9-1:1.8Differential feed ratio
  • 5mmPresser foot lift, top and bottom
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The MF-7923 up close

1 photo · tap to enlarge

The Juki MF-7923 in 30 seconds

What it is

A cylinder-bed top and bottom coverstitch machine from Juki's MF-7900 series, in the universal U11 type with 3 needles and 5 threads.

Who it's for

T-shirt, polo, sportswear and knitwear factories in the UAE, the GCC and Africa.

Why this model

Pick it for a cylinder-bed coverstitch with fine feed control. The feed locus adjusts from outside and the differential feed has a micro-adjustment, so elastic fabric is easier to match.

Setting up a factory line with the MF-7923

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the MF-7923 does on a factory floor

Juki MF-7923 top and bottom coverstitch machine

New feed mechanism

Feed locus adjusted from the outside

The feed locus can be adjusted in the vertical and horizontal direction from outside, which Juki states improves responsiveness to the material.

On the factory floorBecause the feed is adjusted from outside, operators match the feed to each fabric without opening the machine up.

Juki MF-7923 top and bottom coverstitch machine

Differential-feed micro-adjustment

A fine adjustment that holds when stitch length changes

The differential feed amount can be finely set for the fabric, and the ratio stays constant even if the stitch length changes.

On the factory floorBecause the ratio holds, operators change the stitch length without redoing the puckering adjustment.

Juki MF-7923 top and bottom coverstitch machine

Looper thread twining prevention

A broken looper thread is trimmed before it twines

The mechanism is standard. If the looper thread breaks it is trimmed before it twines on the looper thread cam, which now sits outside the machine.

On the factory floorBecause the cam is outside and the thread is trimmed first, a looper break is quicker to clear.

  • Micro-lifter

    The presser foot can be kept slightly raised, so elastic and delicate fabrics slip and mark less.

  • Direct drive on trimmer builds

    Machines with a thread trimmer have a direct-drive motor. Juki states it cuts power use by 27% against earlier models.

  • Common gauge parts

    Commercially available presser feet, throat plates and needle clamps fit, so they are easy to find.

Juki MF-7923 specifications

Sewing

Stitch type3-needle, 5-thread top and bottom coverstitch
Stitch length0.9-3.6 mm, adjustable to 4.5 mm
Differential feed ratio1:0.9-1:1.8, switchable to 1:0.6-1:1.1
Presser foot lift5 mm top and bottom, 8 mm bottom only
NeedleUY128GAS (#10S), #9-#12S
Needle gauge5.6 mm (B56)

Drive and control

Max sewing speed5,000 to 6,500 sti/min across the MF-7900 range, by build
Needle bar stroke31 mm, 33 mm for heavy fabric
LubricationJUKI Machine Oil 18 (ISO VG18 equivalent), silicon oil tank for needle tip and needle thread

Build

BedCylinder-bed
TypeU11 universal
ApplicationsT-shirts, polo shirts, knitwear, sportswear

Figures from Juki's MF-7900 Series catalogue (December 2020).

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Juki MF-7923Full specifications from Juki, PDF Download

Questions about the Juki MF-7923

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the MF-7923 the same as the MF-7900?

MF-7900 is the series of cylinder-bed top and bottom coverstitch machines. The MF-7923 is its 3-needle, 5-thread version, U11 is the universal type and B56 the 5.6 mm needle gauge.

Is the MF-7923 flat-bed or cylinder-bed?

Cylinder-bed. Juki's flat-bed coverstitch machine is the MF-7523, so tell us the work and we quote the right bed.

Does the MF-7923 have the semi-dry head?

Juki's semi-dry-head builds carry a D in the code, as in MF-7923D, and run up to 5,000 stitches a minute. Tell us which head you want and we confirm the build.

What is the price of the Juki MF-7923 in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the Juki MF-7923 and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the Juki MF-7923 before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.

What warranty comes with the Juki MF-7923?

A 1-year warranty, handled by our own service team, who also install the machine.

Spare parts

Juki spare parts, genuine and replacement

66 of the Juki parts our customers order most, listed with part numbers. We supply thousands more: send us the part number, the machine model or a photo of the old part.
