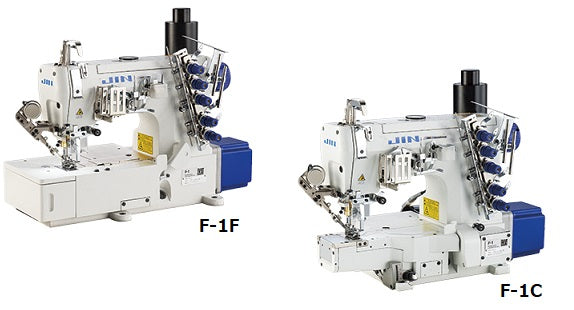

Jin F-1F and F-1C Series, High Speed Top and Bottom Coverstitch Machine

Jin F-1F and F-1C Series, High Speed Top and Bottom Coverstitch Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Coverstitch machines in a flat bed build and a cylinder bed build.

The Jin F-1 Series sews a three needle top and bottom covering stitch. Juki publishes the series in two bed types: the F-1F flat bed, and the F-1C cylinder bed for tubular work such as cuffs and collars. Both are direct drive, with the operation panel integrated with the control box.

Juki states that an LED light under the arm jaw is standard across the F-1 series, and that a silicon oil tank for the needle tip and needle thread and a cartridge oil filter are provided as standard.

Specification published by Juki

Model names F-1F-U, F-1F-C and F-1F-E (flat bed). F-1C-U and F-1C-H (cylinder bed)
Stitch type 3 needle top and bottom covering stitch
Max. sewing speed 5,000 stitches per minute
Stitch pitch adjustment By push button (F-1F), by dial (F-1C)
Differential feed adjustment By lever (F-1F), by screw adjustment (F-1C)
Needle bar stroke 31.0 mm (F-1F), 33.4 mm (F-1C)
Lift of the presser foot 5 mm with top and bottom covering stitch, 8 mm with bottom covering stitch
Needle UY×128GAS #11, range #11 to #14
Lubrication Automatic
Lubricating oil Juki Machine Oil 18, equivalent to ISO VG18
Silicon oil tank for needle tip and needle thread Provided as standard
Cartridge oil filter Provided as standard
Power requirement Single phase 220V or single phase 110V
Power consumption 869VA (F-1F), 822VA (F-1C)

Al Borj Machinery in Sharjah supplies Jin machines with installation, operator training and annual maintenance across the UAE, Saudi Arabia and the wider GCC. Tell us whether the work is flat or tubular and we will quote the right bed type.
