JackW4-D-01GB 3-Needle Flatbed Interlock Machine

Also listed as W4, W4-D, W4 D 01GB, W4D01GB and Jack W4 interlock

A flatbed interlock machine for hems, cover seams and binding on knitwear, with 3 needles, 5 threads and the motor built into the head. It is the plain seaming build of the W4 series, so it has no automatic functions.

Built for Garment factoriesUniform factories

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

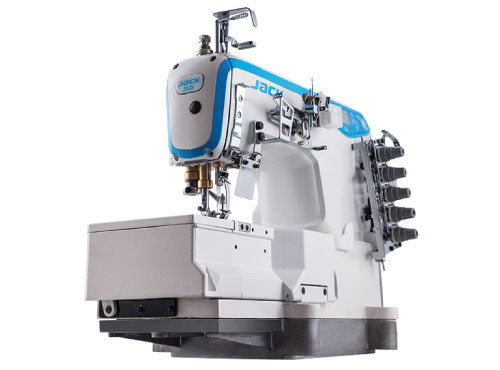

Jack W4-D-01GB 3-needle flatbed interlock machine, full view of the head and bed
  • 5,500spmMax speed
  • 1.5-4.5mmStitch length
  • 0.65-1.3Differential ratio
  • 7mmPresser foot lift
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The W4-D-01GB up close

2 photos · tap to enlarge

The Jack W4-D-01GB in 30 seconds

What it is

A 3-needle, 5-thread flatbed interlock machine, direct drive, in the plain seaming subclass of the W4 series.

Who it's for

Knitwear, T-shirt and sportswear factories in the UAE, the GCC and Africa, working hems, cover seams and binding on flat panels.

Why this model

Pick it for flat panels. For tubular parts such as sleeves, look at the cylinder-bed Jack K5E-UT.

Setting up a factory line with the W4-D-01GB

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the W4-D-01GB does on a factory floor

Jack W4-D-01GB 3-needle top and bottom flatbed interlock machine

5,500 rpm

A higher speed than an ordinary covering machine

Jack states the W4 runs at 5,500 rpm against 3,700 rpm for an ordinary covering machine, which it puts at more than 50% better efficiency.

On the factory floorBecause it runs faster than an ordinary covering machine, each operator finishes more hems and cover seams in a shift.

Jack W4-D-01GB 3-needle top and bottom flatbed interlock machine

Fabric range

Heavy to mesh, up to 8 layers

Jack states the machine sews heavy, medium, light and mesh fabric, and up to 8 layers of fabric thickness, without any adjustment.

On the factory floorBecause it takes this range without adjustment, a knitwear line changing fabric does not stop to re-set the machine.

Jack W4-D-01GB 3-needle top and bottom flatbed interlock machine

Differential feed

Bottom differential feed for Lycra

Jack states the bottom differential feed holds stitch quality on difficult Lycra material, and a thread catcher holds the cut needle threads.

On the factory floorBecause the bottom feed controls the stretch, the stitch stays even on Lycra and other elastic knits.

  • Integrated control box and motor

    Jack states this gives a quick, clean installation.

  • LED lighting

    Three levels of intensity.

  • Other W4 subclasses

    Jack also publishes tape binding, covering stitch, bottom hemming and elastic lace attaching.

Jack W4-D-01GB specifications

Sewing

FunctionPlain seaming
NeedleUY128GAS, 11-14#
Needles and threads3 / 5
Stitch length1.5-4.5 mm
Needle gauge (stitch width)5.6 mm or 6.4 mm
Differential feed ratio0.65-1.3
Presser foot lift7 mm
Max sewing speed5,500 spm

Build

Dimensions670 × 445 × 595 mm
Weight48 kg net, 58 kg gross

Figures from Jack's W4 catalogue.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Jack W4-D-01GBFull specifications from Jack, PDF Download

Questions about the Jack W4-D-01GB

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

What do the letters in W4-D-01GB mean?

W4 is the series. In Jack's codes the D marks the direct drive build and the UT marks the computerised one. The 01GB is the plain seaming subclass without automatic functions.

Does it trim the thread automatically?

No. The W4-D-01GB is the standard machine without automatic functions. A thread catcher holds the cut needle threads. Jack shows the automatic thread trimmer on its computerised builds.

Which other W4 builds exist?

Jack publishes subclasses for tape binding, covering stitch, bottom hemming and elastic lace attaching. Tell us the operation and we confirm the subclass and the needle gauge before you order.

What is the price of the Jack W4-D-01GB in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the Jack W4-D-01GB and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the Jack W4-D-01GB before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.

What warranty comes with the Jack W4-D-01GB?

A 2-year warranty, handled by our own service team, who also install the machine.

Spare parts

Spare parts for the Jack W4-D-01GB

5 parts for this machine are listed with their part numbers, and 69 Jack parts in all. We supply thousands more: send us the part number, the machine model or a photo of the old part.
