Jack C5T, Overlock Machine

Jack C5T, Overlock Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

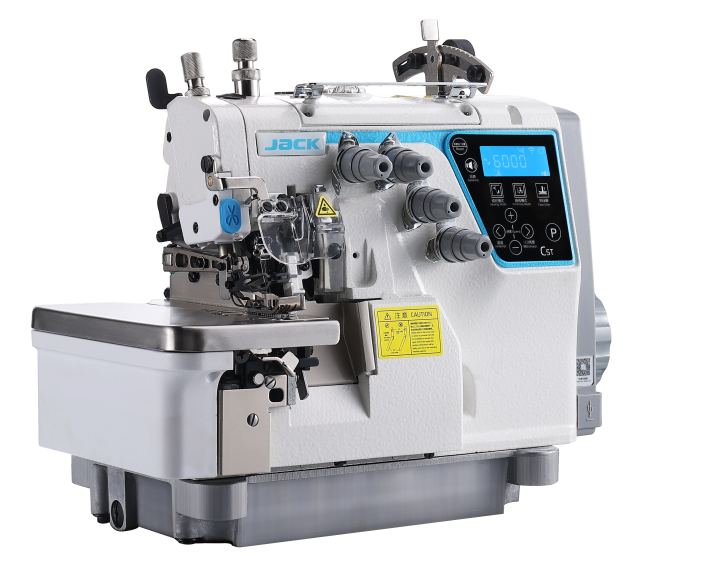

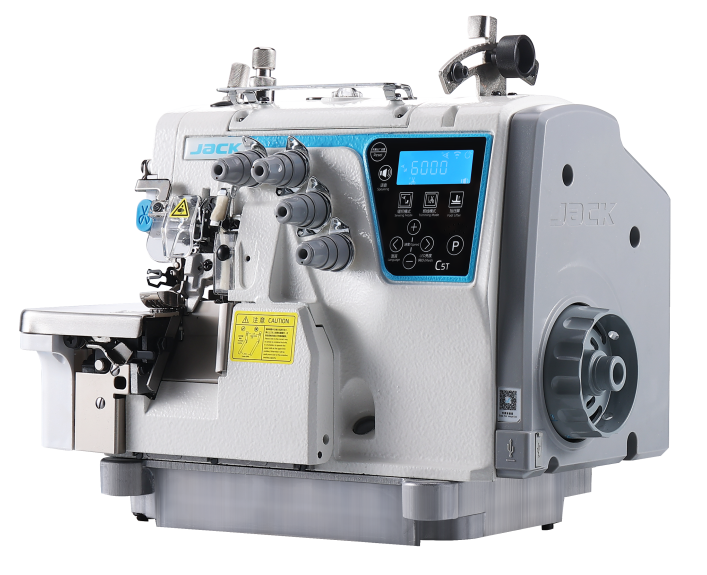

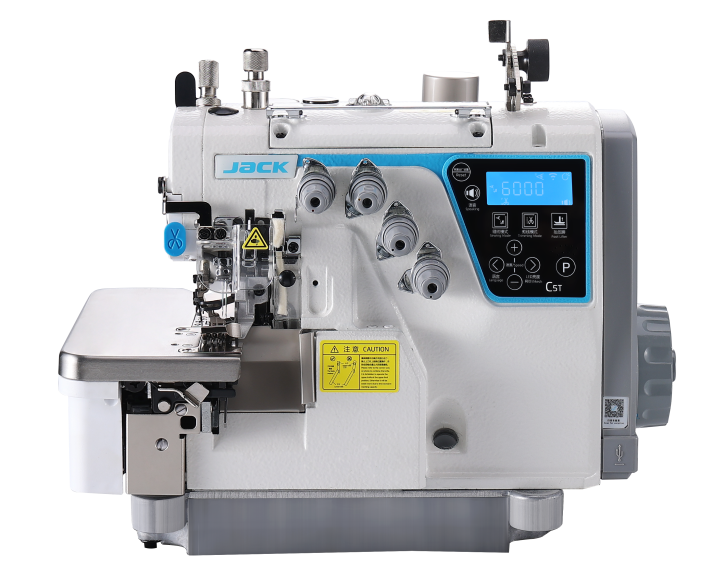

A digital top-feed overlock machine, built for heavier fabrics that standard overlock machines struggle to move evenly.

The Jack C5T adds a top feed dog above the standard bottom feed. This grips heavy or bulky fabric layers from both sides and stops layers from shifting apart while sewing. It works well for UAE workshops producing padded workwear, heavy uniforms, and multi-layer garments that need a strong, even seam.

Key features

  • Digital top feed with double feed dog for even movement of heavy layers
  • Top and bottom differential feeding, adjustable by gear mechanism
  • Automatic thread cutting: 8 mm at the front, 5 mm at the rear
  • Electronic, photocell-controlled presser foot lifter
  • Fully-automatic, semi-automatic, and computerized sewing modes
  • Mesh fabric mode for lighter, delicate materials
  • Voice guide for setup and error assistance

Specifications

Spec Detail
Machine type Digital overlock with top feed
Motor 750 W, direct drive
Presser foot max height 7 mm
Speed Up to 5,500 rpm (0-5,500 rpm in 100 ms)
Deceleration 5,500 to 0 rpm in 180 ms
Thread cutting 8 mm front / 5 mm rear
Connectivity WiFi, Industry 4.0 ready
