Jack JK-5878-58, Placket Setting Machine

Jack JK-5878-58, Placket Setting Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Sets clean, even plackets on shirts, one after another, without hand-guiding the fabric.

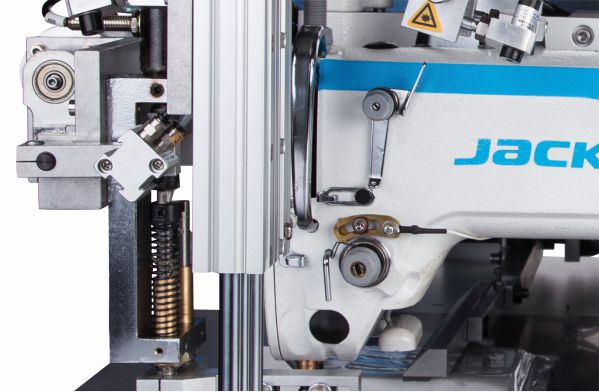

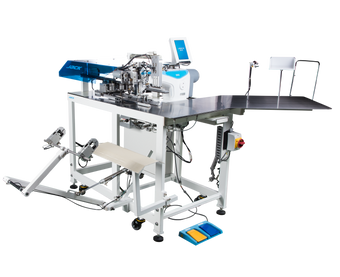

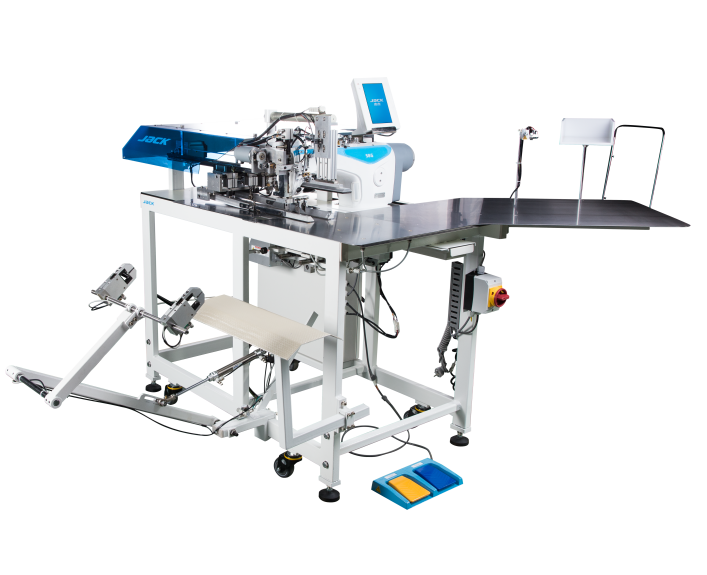

The Jack JK-5878-58 is an automatic placket setting machine built for shirt and uniform lines. It positions and stitches the placket strip using laser guides, so operators load the fabric and the machine handles the sewing path. This suits UAE and GCC workshops producing shirts, uniforms, and kandoora collars and plackets at volume, where placket quality and consistency need to hold across every unit.

Key features

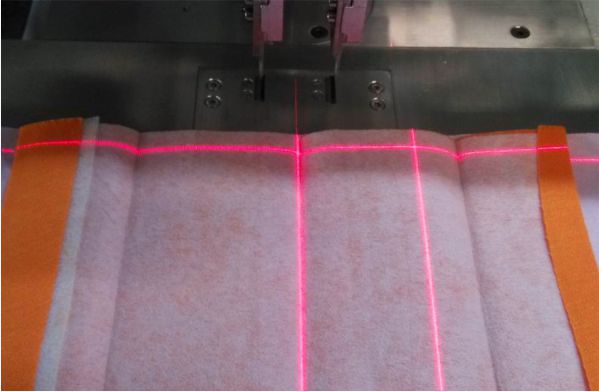

  • Laser cross-guide positioning on the workbench and preparation station for accurate placket placement
  • Large touchscreen control panel with USB program storage and software updates
  • Handles multiple placket styles, including V-placket and blanket-front, for men's and women's garments
  • Automatic stop sensor halts the machine if a fault is detected, protecting the fabric
  • Automatic collection and folding device for finished pieces
  • Movable sewing head to adjust placket sewing length

Specifications

Spec Detail
Application Shirt / T-shirt placket
Needle system DBx1 11#
Stitch / thread 1-needle, 2-thread lockstitch
Sewing width 1-50 mm
Sewing length 15-260 mm
Max sewing speed 4,000 s.p.m
Package dimensions 2050 x 1050 x 1580 mm
Net / gross weight 258 / 350 kg
Request a quote

Get a price for the Jack JK-5878-58, Placket Setting Machine

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts
