• Jack JK-797, Small-Arm Overlock Machine
  • Jack JK-797, Small-Arm Overlock Machine
  • Jack JK-797, Small-Arm Overlock Machine
  • Jack JK-797, Small-Arm Overlock Machine
1 4

Jack JK-797, Small-Arm Overlock Machine

Jack JK-797, Small-Arm Overlock Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Built for tight, small-diameter seams that a standard overlock arm cannot reach.

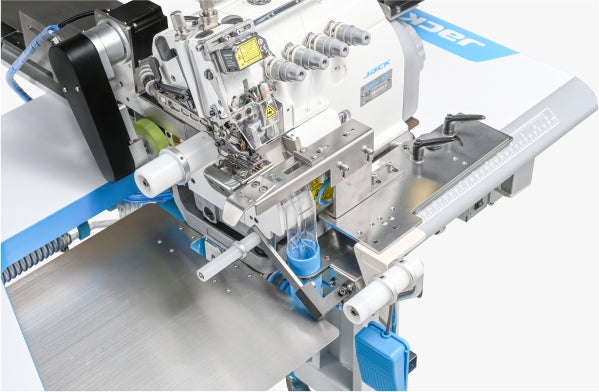

The Jack JK-797 is a small cylinder-bed overlock machine. Its slim 148mm bed head fits inside T-shirt necklines, cuffs, and other small tubular openings. UAE uniform and sportswear workshops use it for collar bands, sleeve cuffs, and sock tops. It also suits abaya and kandoora workshops that finish narrow sleeve and hem openings.

Key features

  • Small cylinder bed with 148mm head circumference for tight tubular sewing
  • Direct-drive servo motor. Jack states that the built-in servo motor saves up to 71% energy, measured against previous generations of motor
  • Cooling fan built into the handwheel. Jack states that it prevents overheating and extends the machine's life
  • One-button stitch length adjustment via the handwheel
  • Top differential feed option (TDI) keeps fabric straight during feeding
  • Suited to T-shirt cuffs, round necklines, children's clothing cuffs, and socks

Specification published by Jack

Spec Detail
Current model name JK-797DI
Needle count 1
Thread count 3 or 4, depending on configuration
Needle size 11# (3-thread) or 9# (4-thread)
Stitch width 3mm (3-thread) or 5-7mm (4-thread)
Stitch length 3.8mm
Differential ratio 0.8-1.8
Presser foot height 5mm-5.5mm
Max speed 5,500 stitches per minute
Cylinder bed circumference 148mm
Request a quote

Get a price for the Jack JK-797, Small-Arm Overlock Machine

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts

FAQs about this machine

See all FAQs

Are the machines you supply genuine?

Yes. Al Borj is an authorised distributor for the brands we carry, so every machine is genuine and comes with full manufacturer support.

How do I choose the right machine for my factory?

Tell us what you make and your production target. Our team will study your needs and recommend the right machine, then support you with installation, training and after-sales service.
