JackJK-5878-68 Automatic Pocket Welting Machine
Also listed as JK-T5878-68, T5878-68, 5878-68, JK5878-68 and JK 5878 68
An automatic pocket welting machine for jacket, blazer, trouser and uniform lines. It sews single welt, double welt and double welt with flap pockets to one size and shape, so a pocket section does not depend on each operator's hand.
Built for Garment factoriesUniform factoriesManufacturing automation
Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

- 3,000spmMax speed
- 18-220mmPocket size
- 8-20mmNeedle gauge
- 2,000pocketsPer 8 hours, Jack states
- 5,000+factories supplied by Al Borj in the Middle East and Africa

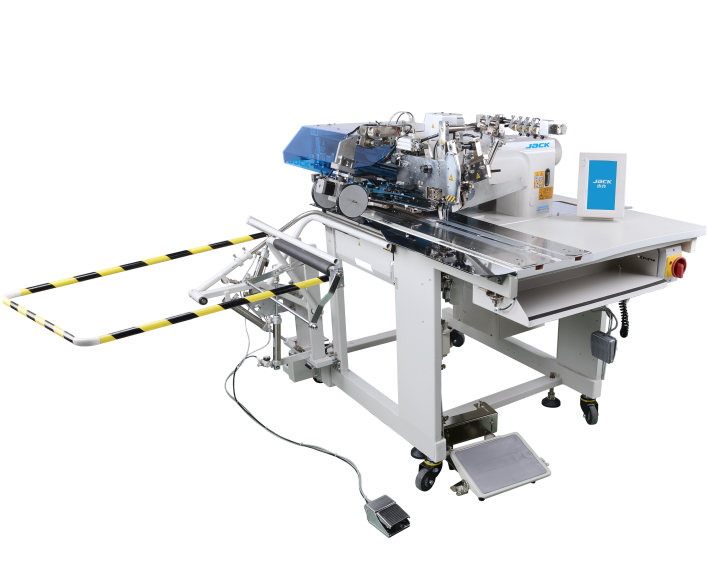

The JK-5878-68 up close
4 photos · tap to enlargeThe Jack JK-5878-68 in 30 seconds
What it is
An automatic welt pocket machine with a touch panel, a bobbin thread sensor, a broken thread sensor and a corner knife on a drawer.
Who it's for
Jacket, blazer, trouser and uniform factories in the UAE, the GCC and Africa, and tailoring workshops with repeat pocket work.
Why this model
Jack states one machine produces up to 2,000 pockets in 8 hours and puts the production gain at 700% over 7 lockstitch machines, so a pocket section needs less floor space and fewer machines.
Setting up a factory line with the JK-5878-68
We quote by the line and stay with you after the machines are running.
- 01
Factory assessment
We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.
- 02
Quote by the line
Machines, delivery and installation in one AED quotation.
- 03
Installation and training
Our technicians set up every machine at your factory and train your operators on site.
- 04
Parts and maintenance
Spare parts and annual maintenance contracts for every machine on the floor.
What the JK-5878-68 does on a factory floor

Pocket styles
Single welt, double welt and flap pockets from one machine
Jack lists single welt, double welt and double welt pockets, with or without a flap, on this machine. The straight pocket build is the JK-T5878-68B and the slant pocket build is the JK-T5878-78.
On the factory floorBecause one machine sews the common welt styles, a jacket or trouser line does not need a separate machine for each pocket.

Touch panel and USB
Patterns load from USB, not set by hand
A large touch panel runs the machine. A USB port stores patterns and loads program updates, and an internal SD card plays video.
On the factory floorBecause patterns are stored on USB, the operator loads the saved pocket style for the next job.

Thread sensors
It stops itself on a broken thread
A bobbin thread sensor warns the operator before the bobbin runs out. A thread break sensor stops the machine at once if the thread breaks while it sews.
On the factory floorBecause the machine stops on a broken thread, a faulty pocket does not spoil the garment piece.
Big presser foot adjustment
A button moves the big presser foot, so one machine takes fabrics of different thickness.
Corner knife on a drawer
The knife slides out for direct adjustment. Jack gives it an elongated head that stays clear of the fabric.

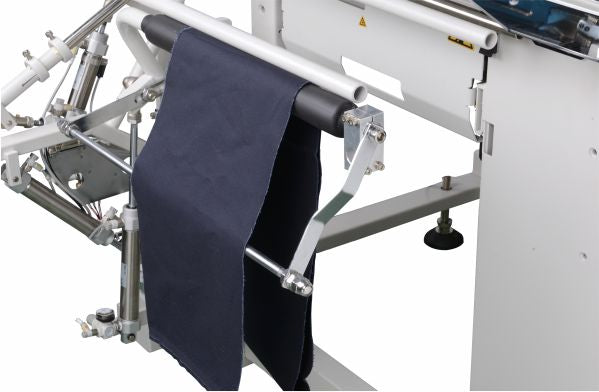

Automatic collection device
Folds the finished garment pieces as they leave the machine.
Jack JK-5878-68 specifications
Sewing
| Pocket styles | Single welt, double welt, double welt with flap |
|---|---|
| Pocket type | Straight (JK-T5878-68B) or slant (JK-T5878-78) |
| Needle system | Mtx190 14-18# (straight); DPx17 14-18# (slant) |
| Needles and threads | 2-needle, 3-thread |
| Needle gauge | 8-20 mm |
| Pocket size range | 18-220 mm |
| Max sewing speed | 3,000 spm |
Control
| Panel | Touch panel, USB port, SD card for video |
|---|---|
| Sensors | Bobbin thread and broken thread |
| Presser foot | Big presser foot, adjustable pressure left and right |
Build
| Package size | 1600 × 1100 × 1500 mm |
|---|---|
| Weight | 240 kg net, 350 kg gross |
Figures as listed by Jack.
Included with every Al Borj machine
- Delivery across the UAE and the wider Middle East and Africa
- Installation at your factory
- Operator training on site
- Genuine spare parts
- Annual maintenance contracts (AMC)
Questions about the Jack JK-5878-68
Anything else, ask us on WhatsApp. We usually reply within one working day.
Ask on WhatsAppIs the JK-5878-68 the same as the JK-T5878-68?
Yes. Jack's catalogue calls it the JK-T5878-68 and we list it as the JK-5878-68. Jack builds the straight pocket machine as the JK-T5878-68B and the slant pocket machine as the JK-T5878-78. Tell us which pocket you sew and we confirm the build.
Which pocket styles does the JK-5878-68 sew?
Single welt, double welt, and double welt with a flap, with or without the flap.
What pocket sizes can it sew?
Pocket lengths from 18 to 220 mm, with a needle gauge of 8 to 20 mm.
What is the price of the Jack JK-5878-68 in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?
It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.
Can you equip a whole line, not just this machine?
Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.
Do you deliver the Jack JK-5878-68 and train our operators?
Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.
Can I see the Jack JK-5878-68 before I buy?
Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.
What warranty comes with the Jack JK-5878-68?
A 2-year warranty, handled by our own service team, who also install the machine.
Genuine Jack spare parts
The wear parts for the Jack machines we sell, with Jack's own part numbers: 69 parts listed. We supply thousands more: send us the part number, the machine model or a photo of the old part.
