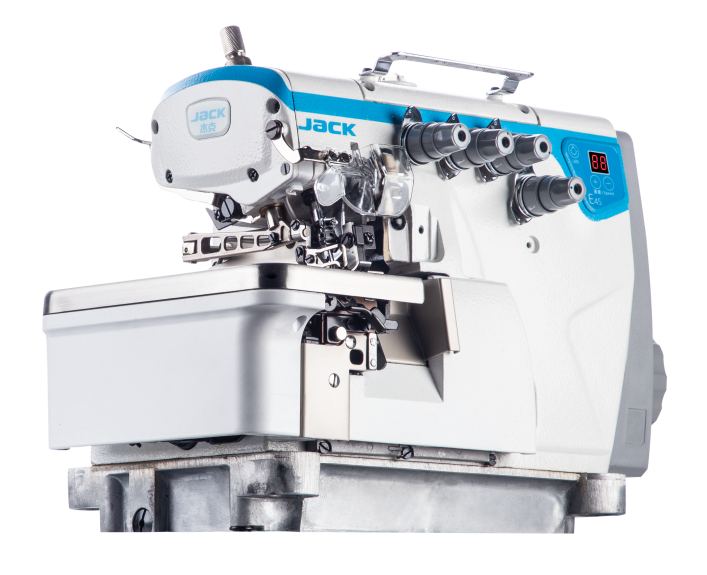

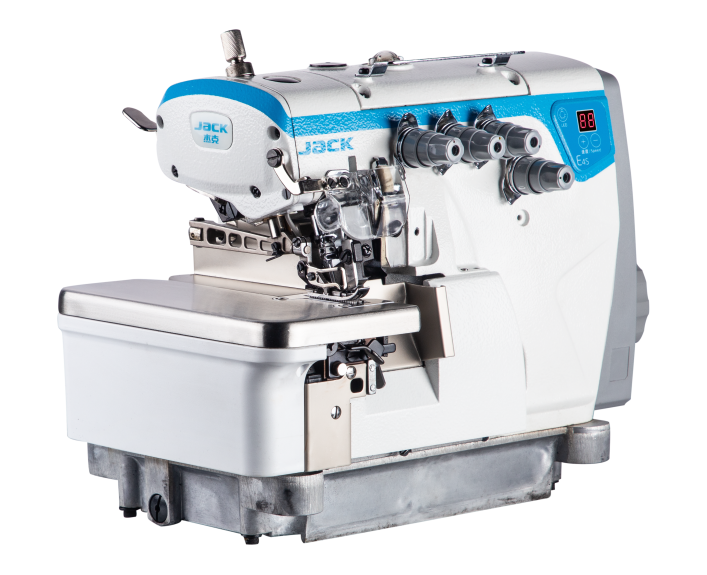

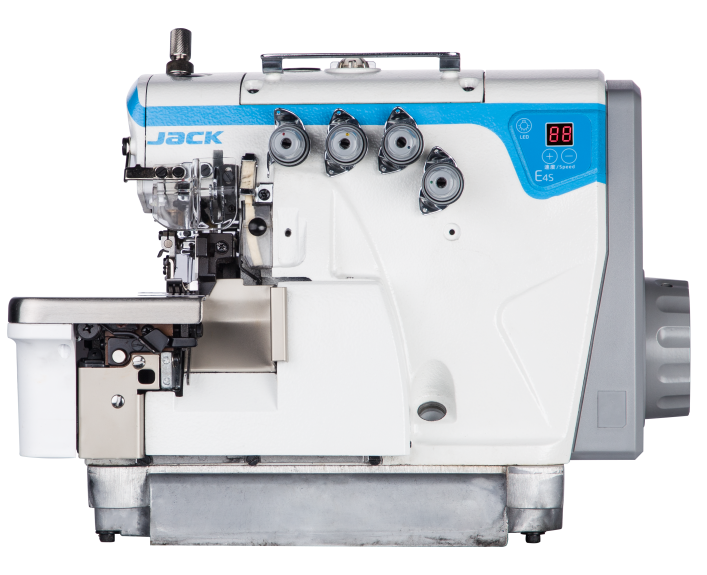

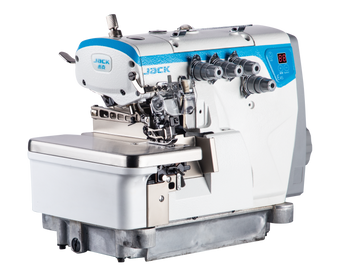

Jack E4S, Overlock Machine

Jack E4S, Overlock Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

An overlock machine that switches between light, medium, and heavy fabric settings with one lever.

The Jack E4S uses a patented selector lever to change the feed dog angle for light, medium, or heavy material. Workshops don't need to manually adjust the feed dogs between jobs. This suits UAE garment workshops that move between mesh, knit, and denim-weight orders on the same line, including uniform and abaya or kandoora production.

Key features

  • Patented L/M/H selector lever changes feed dog angle for light, medium, or heavy fabric
  • One main shaft design for stable, fast, durable running
  • Start and brake response shortened by 40-50%
  • Enclosed needle bar mechanism prevents oil leakage and keeps sewing clean
  • One-key reset with intelligent LED panel
  • Direct drive motor with energy-saving design
  • Available in 3, 4, 5, and 6-thread configurations

Specifications

Spec Detail
Machine type Overlock with L/M/H feeding selector
Needle system 11#, DCx27 type
Needle gauge 2 mm
Stitch width 4 mm
Stitch length 4.6 mm
Differential ratio 0.7-2
Presser foot lift 6.5 mm
Max sewing speed 5,500 stitches per minute
Machine dimensions 525 × 360 × 510 mm
Net weight 28 / 36 kg
Request a quote

Get a price for the Jack E4S, Overlock Machine

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts
