• FK Group UNICONT automatic fabric spreading system
1 1

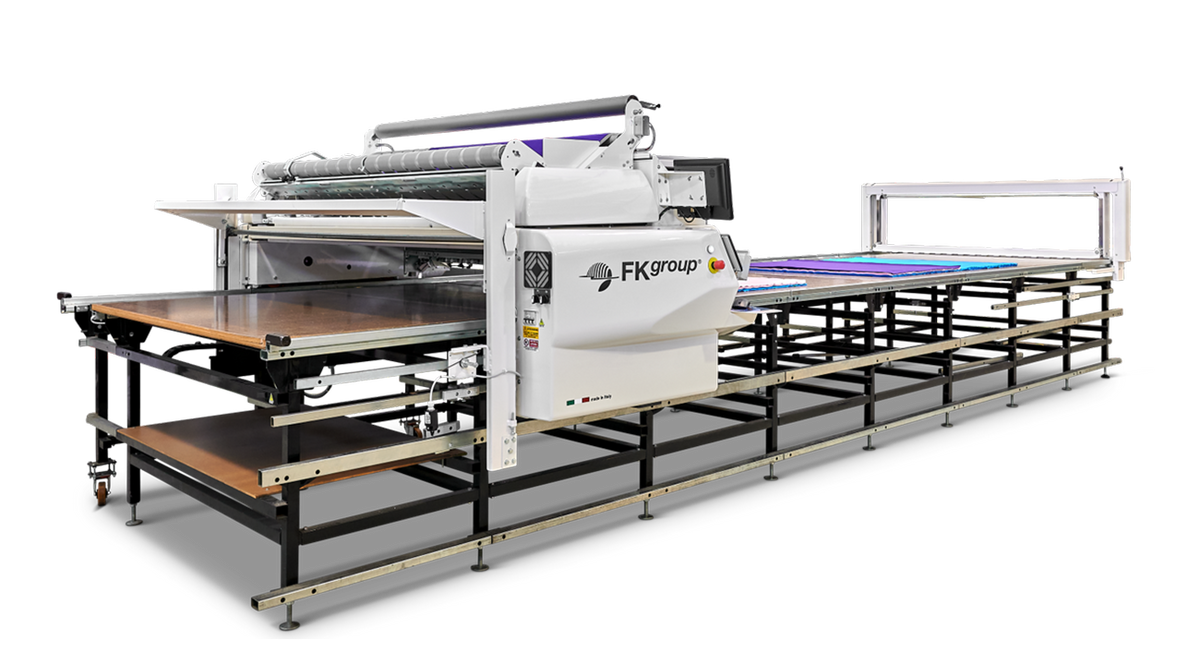

FK Group UNICONT, Automatic Fabric Spreading System

FK Group UNICONT, Automatic Fabric Spreading System

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Built for cutting rooms that want the lay controlled and recorded.

The FK Group UNICONT is an automatic fabric spreader with a cradle feed, and FK Group describes it as working with both straight and reverse rolls. FK Group publishes four working widths, from 160 cm to 220 cm, and states a maximum spreading speed of 100 m per minute when the machine is fitted with the cutting device and mobile catcher. Lay thickness is measured with infra red sensing. FK Group lists it as the Unicont Spreading System and heads the product page UNICONT. Al Borj supplies, installs and services FK Group cutting room equipment from Sharjah.

Key features, as published by FK Group

  • Cradle feed design, with manual operation through a digitally controlled analogue and automatic handle
  • Handles straight and reverse rolls
  • Digitally controlled acceleration and deceleration on the spreading stroke
  • Automatic electronic control of fabric tension
  • Brushless main motors and variable speed asynchronous service motors
  • Four wheel drive
  • Cutting device that can run with or without a catcher, and with a mobile catcher
  • Lay thickness measured with infra red technology

Specification published by FK Group

Model UNICONT
Type Automatic fabric spreading system
Working widths 160, 180, 200 and 220 cm
Overall dimensions 142 x 300 x 160 cm at 160 cm width, up to 142 x 360 x 160 cm at 220 cm width
Weight 425 kg at 160 cm width, up to 575 kg at 220 cm width
Installed power 3 kW, and 3.2 kW at 220 cm width
Average consumption 1.8 kW, and 2 kW at 220 cm width
Maximum spreading speed FK Group states 100 m per minute, with the cutting device and mobile catcher
Maximum lay height 18 cm, or 14 cm with zig zag
Maximum roll diameter 80 cm
Maximum roll weight 70 kg
Power supply 400 V plus or minus 10 percent

Source: FK Group product page for the Unicont Spreading System. Tell us your fabric width and roll weight and we will quote the working width.
