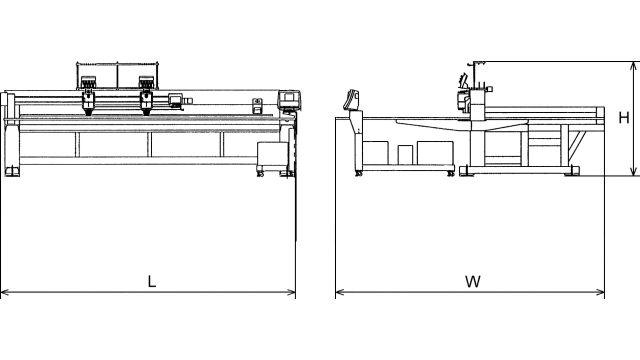

  • Barudan BELS Large Field, Large-Field Multi-Head Embroidery Machine specifications diagram
1 2

Barudan BELS Large Field, Large-Field Multi-Head Embroidery Machine

Barudan BELS Large Field, Large-Field Multi-Head Embroidery Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

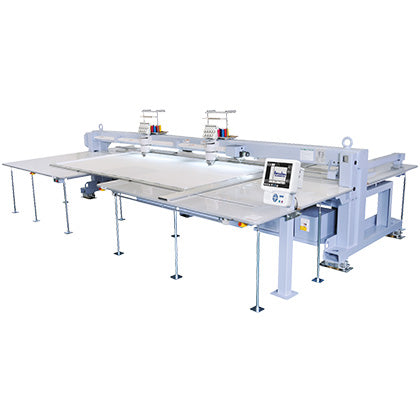

The Barudan BELS Large Field is a 9-needle multi-head embroidery machine built for oversized designs.

It has a large embroidery field for varicoloured embroidery on big items. Barudan states it is built for home textile products, ethnic cloths, flags, and scarves. It suits home textile and soft-furnishing workshops, and garment factories across the UAE and GCC that embroider large panels rather than small garment pieces.

Key features

  • Large embroidery field, with a maximum of up to 1600 mm (H) x 1600 mm (V) across the series
  • Rotary head design with 9 needles per head
  • Available in BELS-Y901 (1-head), BELS-Y902 (2-head), and BELS-Y904 (4-head) configurations
  • Double Field Function for continuous designs, for example up to 1500×4000 mm on the BELS-Y904
  • Matrix function for producing badges and emblems
  • Servo-drive motors for high productivity and consistent stitch quality
  • 12.1-inch LCD touchscreen with LAN, USB, and Bluetooth connectivity

Specifications

Spec Detail
Needles per head 9
Head configurations 1 head (Y901), 2 heads (Y902), 4 heads (Y904)
Max embroidery speed 200-1000 rpm
Stitch length 0.1-12.7 mm
Embroidery field, BELS-Y901 1500×500/500 mm or 1500×1000/1000 mm
Embroidery field, BELS-Y902 1500×500/500, 1500×500/1000, or 1500×1000/1000 mm
Embroidery field, BELS-Y904 1500×500/500, 1500×500/1000, or 1500×1000/1000 mm
Power supply 1-phase AC200-240V or 3-phase AC200-415V
