• Barudan BELS-Y9, 9-Needle Multi-Head Embroidery Machine

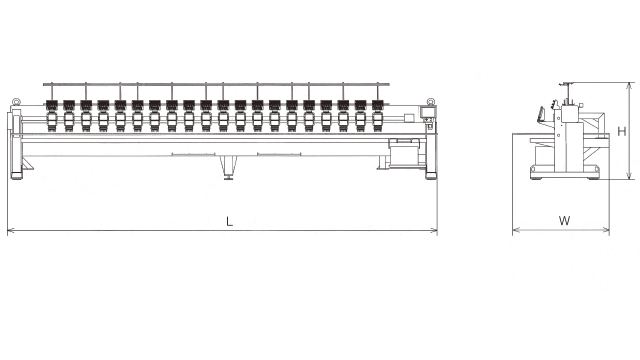

  • Barudan BELS-Y9, 9-Needle Multi-Head Embroidery Machine specifications diagram
1 2

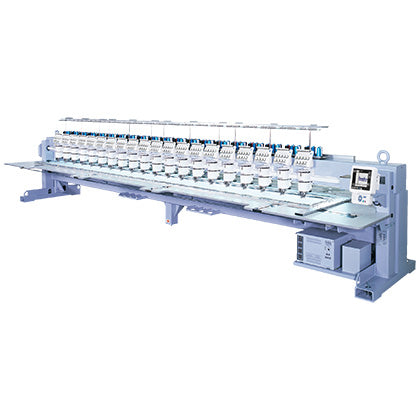

Barudan BELS-Y9, 9-Needle Multi-Head Embroidery Machine

Barudan BELS-Y9, 9-Needle Multi-Head Embroidery Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

The Barudan BELS-Y9 is a 9-needle multi-head embroidery machine built for high-volume production.

Each head has a compact rotary design with 9 needles, giving fast colour changes and more room for fabric and frame changes. The machine comes in several head-count configurations, so a workshop can match the machine size to its output needs. It suits abaya and kandoora ateliers, uniform makers, and garment factories across the UAE and GCC that need to embroider many pieces at once.

Key features

  • Rotary head design with 9 needles per head, for fast colour changes and durability
  • Available in multiple head configurations, including 12-head, 18-head, and 20-head models
  • Servo-drive motors for high productivity and consistent stitch quality
  • MK6 trimmers cut the upper and lower bobbin thread at the same time
  • Double Field Function for continuous designs across the frame
  • 12.1-inch LCD touchscreen with LAN, USB, and Bluetooth connectivity
  • Memory for 300 designs, with capacity for up to 300 million stitches

Specifications

Spec Detail
Needles per head 9
Head configurations 12, 18, and 20 heads (also available from 10 to 28 heads)
Max embroidery speed 200-1000 rpm
Stitch length 0.1-12.7 mm
Embroidery field, BELS-Y912 450×400/450 mm (also 600×400/450, 750×400/450, 1000×500/1000 mm)
Embroidery field, BELS-Y918 450×400/400 mm (also 800×400/500, 1300×400/500 mm)
Embroidery field, BELS-Y920 450×300/500 mm (also 600×300/600, 750×300/500, 1000×300/600 mm)
Power supply 1-phase AC200-240V or 3-phase AC200-415V
Request a quote

Get a price for the Barudan BELS-Y9, 9-Needle Multi-Head Embroidery Machine

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts
