Eisenkolb Catalogue and specifications
Eisenkolb ATS-2400 catalogue (PDF)
Eisenkolb's catalogue for the ATS-2400, which sews the tunnels that carry the rods in a Roman blind and measures and positions each tunnel itself. Blind makers who still stitch tunnels by hand use it to keep the spacing the same on every blind.
2 pages, Eisenkolb catalogue, Al Borj edition, October 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.
What the Eisenkolb ATS-2400 catalogue covers
Two pages in English: the automatic Roman blinds tunnel stitching machine, then its features and technical specifications. It is built around a Durkopp Adler single needle post bed head, sews across 450 cm and stands 420 cm high as standard.
Eisenkolb states the 450 cm width takes an extra wide blind or several blinds at once. Al Borj supplies, installs and services the ATS-2400 from Sharjah and Accra, for curtain and blind workrooms in the GCC and Africa.
Machine type: Automatic Roman blind tunnel stitching machine.
- Effective sewing width
- 450 cm
- Tunnel depth
- 10 mm to 25 mm
- Machine height
- 420 cm as standard, can be raised to 620 cm
- Power supply
- 220 V, 1 phase, 3500 W, 16 A
- Air supply
- 7 bar, 3 L per cycle
- Production capacity
- 10 blinds per hour
Figures from the Eisenkolb catalogue.
Pages from the Eisenkolb ATS-2400 catalogue

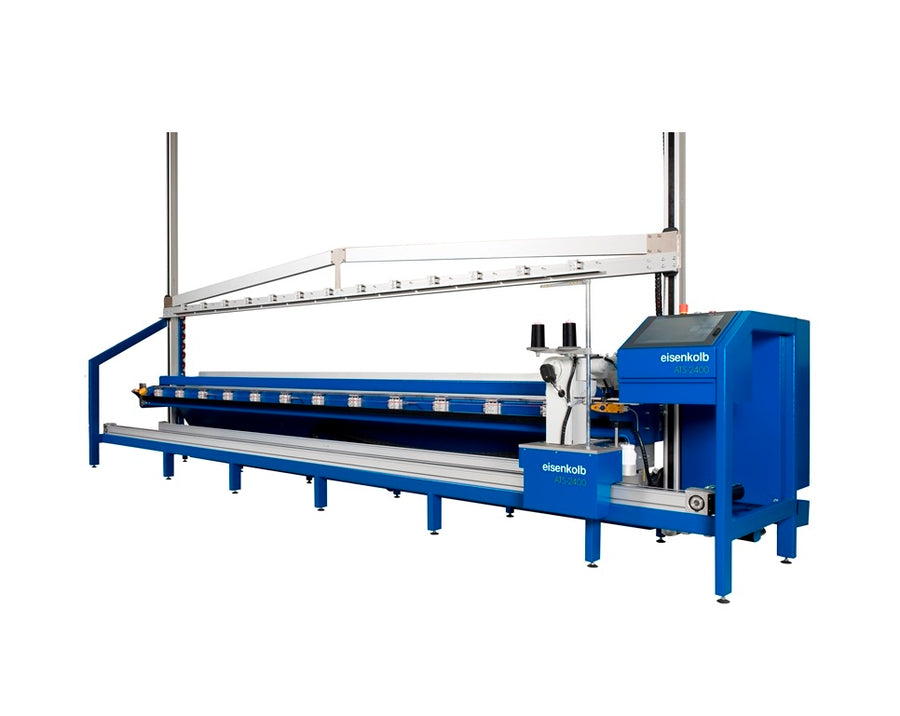

Eisenkolb ATS-2400, Automatic Roman Blinds Tunnel Stitching Machine
