Eisenkolb Catalogue and specifications
Eisenkolb CCP-2300 catalogue (PDF)
Eisenkolb's catalogue for the CCP-2300, a lockstitch conveyor machine that sews single and double hems on curtain panels. Two air-injected hemmers fold the fabric, so curtain workrooms turn out even hems panel after panel.
2 pages, Eisenkolb catalogue, Al Borj edition, October 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.
What the Eisenkolb CCP-2300 catalogue covers
Two pages in English: the CCP-2300 lockstitch conveyor curtain machine, then its features and technical specifications. A high-speed Juki one-needle lockstitch head with adjustable top and bottom feed sews hems up to 120 mm wide along a 550 cm synchronised conveyor belt.
Eisenkolb rates it at about 50 panels an hour on 250 cm panels, the figure to plan a large project order around. Al Borj supplies, installs and services the CCP-2300 from Sharjah and Accra.
Machine type: Lockstitch conveyor curtain hemming machine.
- Hem width
- Up to 120 mm (single and double hem)
- Dimensions
- 550 x 165 cm
- Power
- 220 V, single phase, 1350 W, 16 A
- Air supply
- 6 bar, 3 L per cycle
- Production capacity
- Approx. 50 panels/hour (250 cm average panel length)
Figures from the Eisenkolb catalogue.
Pages from the Eisenkolb CCP-2300 catalogue

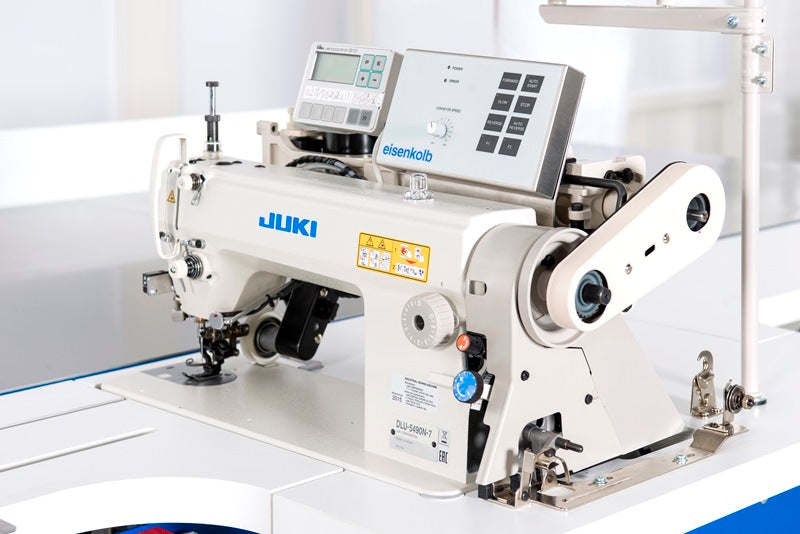

Eisenkolb CCP-2300, Lockstitch Conveyor Hemming Machine
