Richpeace Laser Engraving and Cutting Machine, CO2 flatbed for fabric and leather

For cutting rooms and workshops that cut and engrave fabric, leather and other non metal materials from a digital file instead of a die.

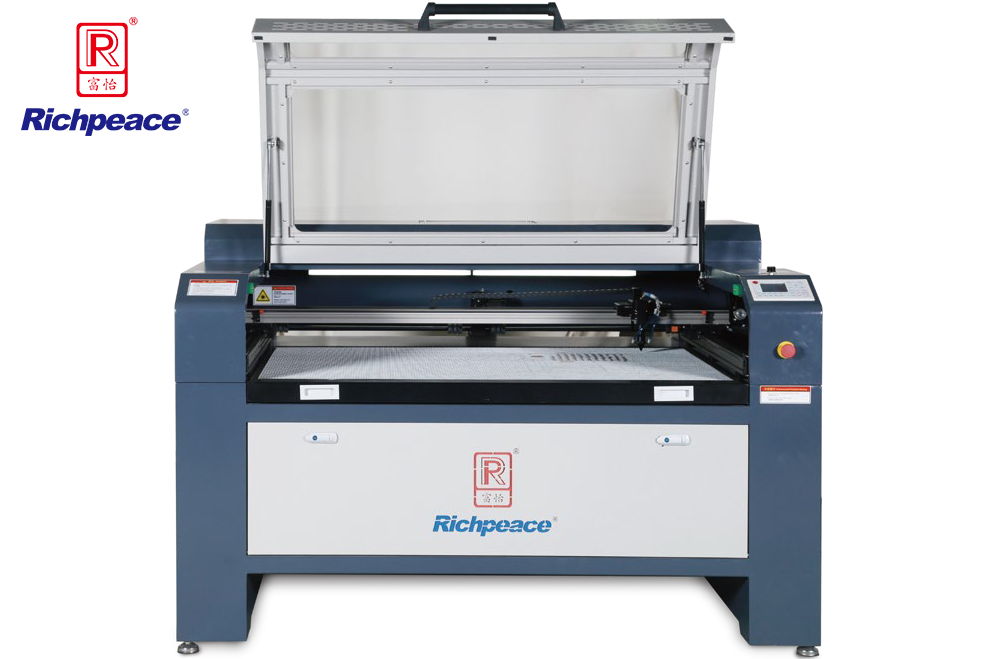

This is Richpeace's CO2 flatbed laser engraving and cutting machine. The shape comes from a file, so a new panel is a new file and not a new cutting die. Richpeace lists garment textile fabrics, toy fabrics, leather products, shoes and bags, bamboo and wood products, acrylic crafts and paper products among the materials for this machine. Al Borj supplies, installs and services Richpeace equipment across the UAE, Saudi Arabia and the wider GCC.

Key features

• CO2 laser cutting and engraving on non metal materials such as fabric, leather, felt, acrylic, wood and paper
• Richpeace states the machine holds a precision error of less than 0.01mm
• Richpeace states a dedicated chiller for the laser tube protects the engraving result and prolongs the working life of the tube
• Richpeace states the software connects directly with AutoCAD, CorelDRAW, Adobe Illustrator and garment CAD, so the original drawing is output without redrawing it
• Richpeace states the machine supports BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, AI, DXF and DST files
• Richpeace states it carries 128M of onboard storage for multiple jobs, with USB hot swap
• Richpeace states a twin head option is available, where the spacing between the two heads adjusts to the size of the shape being cut, to reduce material waste
• Installed, commissioned and serviced by Al Borj engineers in the UAE and the GCC

Specification published by Richpeace

Richpeace publishes this machine as a family with several table sizes and tube powers rather than as one fixed model. The code above is the example configuration printed on the manufacturer's own product page. Tell us your panel size and material and we will confirm the exact configuration on the quotation.

Ask us

• Send us a sample of your material and we will test the cut and confirm the setting.
• Ask us which table size and tube power suit your panels, and whether the twin head option is worth it for your nesting.
• Ask us what is included in the quote, covering installation, operator training and annual maintenance.

Cutting speed, output per hour and the thickness the beam will take on your own material depend on the material and the shape. We do not quote a figure without testing it first.

This machine cuts and engraves. Richpeace does not publish a laser perforation machine, so if you need ventilation perforation in leather or vinyl, ask us and we will quote a machine built for that job.
