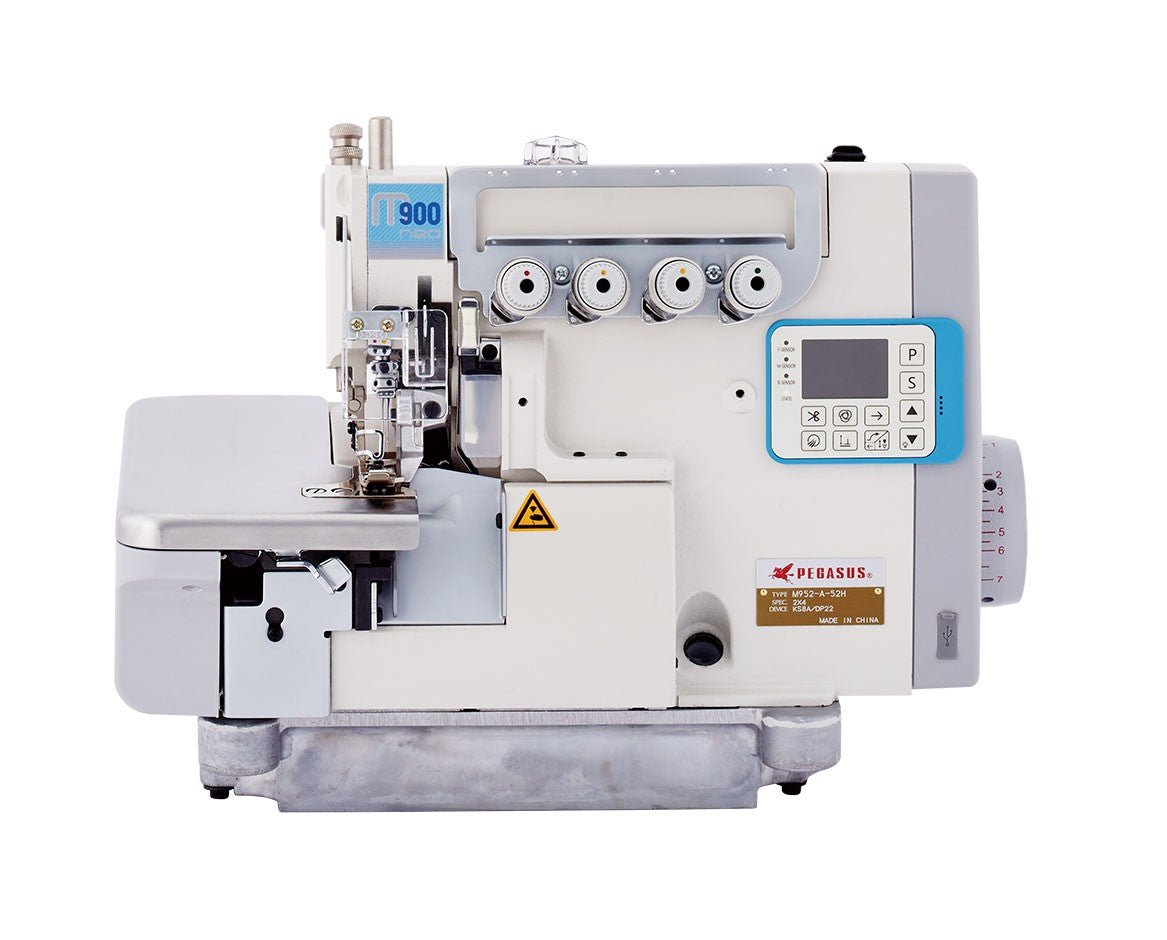

Pegasus M952 Industrial Overlock Sewing Machine, M900neo Series
Also listed as M952, M 952, M952-52H, M952-A-52H, M952-17, M952-A-17, M952-16S2, M952-52-2X4, M900neo and M900
Pegasus's current overlock for seaming knits and finishing edges, with the direct drive motor, control box and operation panel built into the head. It runs at up to 6,500 stitches a minute and goes onto the table ready to sew.
Built for Garment factoriesUniform factoriesAbaya and kandoora production
Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.
- 6,500sti/minMax speed, DP22 and DP32
- 4threads2 needles, 514 overlock
- 1.5-7mmOveredging width by subclass
- 30kgNet weight, motor built in
- 5,000+factories supplied by Al Borj in the Middle East and Africa
The M952 up close
6 photos · tap to enlargeThe Pegasus M952 in 30 seconds
What it is
The overlock model of Pegasus's M900neo series, released in October 2025. Every M952-A has a DP22 or DP32 direct drive motor, control box and operation panel built into the head, in 1-needle 3-thread and 2-needle 4-thread subclasses.
Who it's for
Garment, uniform, T-shirt and polo shirt lines in the UAE, GCC and Africa that seam knits, neaten woven edges or attach tape, and want machines that sew without a separate motor to fit under the table.
Why this model
Pegasus calls the M900neo its entry model for buyers who want reliability and ease of use. Pick the DP22 for a standard line; pick the DP32 for automatic foot lift and trimming, safety sensors and voice guidance.
Setting up a factory line with the M952
On a T-shirt or polo line the 2-needle M952-A-52 or -52H sews shoulder, side and sleeve seams. On a uniform or shirt line the 1-needle M952-A-17 neatens edges before the lockstitch seam. We quote them by the line, with the M932 safety stitch where woven seams need it.
- 01
Factory assessment
We look at what you sew, the seams on each garment and your daily output, then set the mix of lockstitch, overlock and safety stitch machines for each line.
- 02
Quote by the line
Machines, subclasses and devices, tables and stands, delivery and installation in one AED quotation.
- 03
Installation and training
Our technicians set up and thread every machine at your factory, test it on your fabric and train your operators and mechanics on site.
- 04
Parts and maintenance
Genuine Pegasus spare parts, from needles and loopers to knives and feed dogs, and annual maintenance contracts for every machine on the floor.
What the M952 does on a factory floor
Built-in DP22 or DP32 motor
Ready to sew out of the box
Pegasus builds the direct drive motor, control box and operation panel into the M900neo head and states that setup time and effort are greatly reduced, with no setup needed for the motor and other devices. Pegasus also states the series complies with EU standards.
On the factory floorThe motor, control box and panel are built into the head, so mechanics set up a new line without fitting a motor or control box under each table.
DP32 safety sensors
The machine will not run with a guard open
On the DP32, three sensors stop the machine when the eye guard is lifted, the side cover is not closed or the presser arm is out of position, and the panel shows an error code. Dual fabric sensors work the presser foot automatically when they detect fabric and cut the threads after it passes.
On the factory floorThe DP32 stops when a guard or cover is open and trims the threads once the fabric passes, so operators cannot sew unguarded and need no scissors.
KS vacuum chain cutter
Thread chains cut and sucked away
The M952-A/DP22 is built with the KS8A device, Pegasus's vertical type vacuum thread chain cutter, with the suction inlet set vertical to the needle plate. The DP32 builds come as KS8D, KS8E with the SC needle thread releasing device, or AT8G with the automatic tape cutter.
On the factory floorThe vacuum cutter cuts each thread chain and sucks it away, so chains never reach the floor and the operator moves straight to the next panel.
Oil stain protection
Pegasus designs the M900neo to block oil stains and protect sewn products from oil.
LED light
Lights the needle drop point: two colour tones and five brightness levels on the DP32, one tone on the DP22.
Voice guidance
DP32 panels speak English, Chinese, Turkish, Spanish, Bengali, Vietnamese, Portuguese and Indonesian.
Also on the M900neo: a USB port on the panel, air saving on the DP32 (air only before and after sewing), and Pegasus's PL presser foot lifter and LC pneumatic lint collector, standard on the KS8A build and the DP32 KS8D and KS8E builds.
See the M952 sew
Pegasus M952 specifications
Sewing
| Stitch type | Overlock: 504 (1 needle, 3 threads), 514 (2 needles, 4 threads); 503 and 505 on special subclasses |
|---|---|
| Needles and threads | 1 needle 3 threads, or 2 needles 4 threads |
| Max. sewing speed | 6,500 sti/min with DP22 or DP32 (6,000 on -13H and -52H, 5,000 on -90) |
| Head speed on pegasus.co.jp | 7,000 sti/min for the M952-A-17, -13 and -52 |
| Needle space | 2 mm (2.5 mm on -23B) |
| Overedging width | 1.5-7 mm by subclass: -17 4 mm; -52 3, 4 or 5 mm; -52H 4 or 5 mm; -13H up to 7 mm |
| Needle | DC×27, #9 on -17, -13, -52, -52H; #11 on -16S2; #14 on -23B |
| Subclasses | -17 plain seaming 1N 3T; -13, -52 plain seaming and tape 2N 4T; -13H, -52H medium to heavy; -23B extra heavy; -16S2 turn down hemming; -01 blindstitch; -180, -181 backlatching; -90 butt-end |
Feed and presser foot
| Max. main feed dog movement | 3.7 mm (2.7 mm on -23B) |
|---|---|
| Differential feed ratio | 0.7-1.7; 1:2 with the main feed dog at 2.9 mm or less; 1.2-3.5 on -23B |
| Differential feed adjustment | Lever |
| Stitch length adjustment | Push-button |
| Presser foot lift | 5.5 mm (-17, -16S2), 6 mm (-13, -52, -52H), 7 mm (-23B) |
| Chain cutter | KS8A vertical vacuum type on DP22; KS8D, KS8E or AT8G tape cutter on DP32 |
Build
| Drive | Direct drive motor, control box and operation panel built into the head: DP22 basic or DP32 multi-function |
|---|---|
| DP32 adds | Dual fabric sensors with automatic foot lift and thread trimming, three safety sensors, air saving, voice guidance in 8 languages |
| LED light | Standard; two colour tones and five brightness levels on the DP32, one tone on the DP22 |
| Lubrication | Fully automatic, Pegasus High Speed Sewing Machine Oil (ISO VG22) |
| Net weight | 30 kg (40 kg gross with accessories) |
| Machine size | W 397 × D 276 × H 298 mm |
Figures from Pegasus's M900neo catalogue (Catalog No. 103303, May 2025), the M900-A/DP22 instruction manual (2025), Pegasus's M900neo release of 10 October 2025 and the M900neo subclass pages on pegasus.co.jp.
Included with every Al Borj machine
- Delivery across the UAE and the wider Middle East and Africa
- Installation at your factory
- Operator training on site
- Genuine spare parts
- Annual maintenance contracts (AMC)
Pegasus overlock and safety stitch machines side by side
| Feature |
 |
 |
 |
This machine
|
|---|---|---|---|---|
| Best for | Woven seams that take strain: uniforms, trousers, jeans | Knit seams: T-shirts, polo shirts, underwear | Heavy and layered knits: fleece, sweatshirts, tracksuits | Knit seams, edge neatening and tape: T-shirts, uniforms |
| Stitch | Safety stitch (516; 514+401 on -355) | Overlock (514) | Overlock (514) | Overlock (504, 514) |
| Needles and threads | 2 needles 5 threads, or 3 needles 6 threads | 2 needles, 4 threads | 2 needles, 4 threads | 1 needle 3 threads, or 2 needles 4 threads |
| Overedging width | 3.5-6 mm by subclass | 3, 4 or 5 mm, 2 mm gauge | 3 or 4 mm, 2 mm gauge | 1.5-7 mm by subclass |
| Max speed | 6,500 sti/min (5,500 on jeans builds) | 7,500 sti/min | 6,700 sti/min | 6,500 sti/min (DP22, DP32) |
| Head and lubrication | Built-in DD motor, automatic lubrication, 30 kg | Bottom feed, automatic lubrication; MLS low-oil option | Variable top feed, automatic lubrication | Built-in DD motor, automatic lubrication, 30 kg |
| Link | View M932 | View EX5214 | View EXT5214 | You are here |
Questions about the Pegasus M952
Anything else, ask us on WhatsApp. We usually reply within one working day.
Ask on WhatsAppIs the Pegasus M952 the same as the M900?
The M952 is the overlock model of Pegasus's M900 family. Pegasus's current line-up lists it in the M900neo series as the M952-A, built with the DP22 or DP32 motor. The M952 builds we quoted before, such as the M952-17 with the DJ10 panel or the M952-52H with the D222 motor, are earlier M900 versions. People also write M 952, M952-52H or M900neo; the M932 is the safety stitch model of the same series. Pegasus ended production of the M700 in December 2013 and the M800 in December 2014; in Ghana an overlock like the M952 is often called a neating machine.
What is the price of the Pegasus M952 in the UAE and Saudi Arabia?
It depends on the subclass and gauge, the devices fitted, the quantity, the table and stand, and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.
What is the price of the Pegasus M952 in Nigeria, Ghana or Kenya?
We quote it delivered to your city, such as Lagos, Accra or Nairobi, so the price depends on the subclass, the quantity, the table and stand, and shipping. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the price and delivery time, usually within one working day.
Is the M952 suited to a T-shirt or uniform line?
Yes. Pegasus builds the 2-needle M952-A-52 and -52H for plain seaming with a presser foot for attaching tape, which covers shoulder, side and sleeve seams on T-shirts and polo shirts. The 1-needle M952-A-17 neatens edges on uniforms, shirts and workwear before the lockstitch seam. We supply them by the line with tables, stands and installation.
Can you equip a whole line, not just this machine?
Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line, from lockstitch to overlock, safety stitch, coverstitch and special machines, and can visit your factory for an assessment first.
DP22 or DP32: which should I choose?
Pegasus calls the DP22 the basic function type: a direct drive motor with a standard panel. The DP32 is the multi-function type with presser foot lift, thread trimming and air saving, three safety sensors, dual fabric sensors, the two-tone LED and voice guidance in eight languages. Lines with new operators or many trims per garment get most from the DP32.
Which M952 subclass do I need?
For knit seams and tape, the M952-A-52 (light to medium, 3 to 5 mm overedge) or the -52H (medium to heavy, 4 or 5 mm). For edge neatening, the 1-needle -17 with 4 mm overedge. For turn down hemming of light fabric, the -16S2 with 1.5 mm overedge. The -23B takes extra heavy fabric. Send us a sample and we confirm the subclass and gauge.
Can you supply the manual, parts book and genuine parts for the Pegasus M952?
Pegasus publishes the instruction manual and parts list for the M900neo series in its online catalogue, and we quote genuine Pegasus parts by part number, from loopers and knives to needle plates and feed dogs. Send the code on the machine's plate, or a photo of it, on WhatsApp and we find the part.
Do you deliver, install and train our operators?
Yes. We deliver across the UAE, the GCC and Africa, to cities such as Riyadh, Lagos, Accra and Nairobi, install every machine at your factory and train your operators and mechanics. After that we support you with genuine spare parts and annual maintenance contracts.
Can I see the M952 working before I buy?
Book a meeting at our showroom in Industrial Area 4, Sharjah, and bring samples of your fabric and the seam you need. Tell us the subclass you are considering when you book, and we confirm before your visit what we can show you and how we test your fabric.
