Jack JK-1500C-UT, Straight-Cylinder Interlock Machine

A straight-cylinder interlock machine for sleeves, necklines and hems.

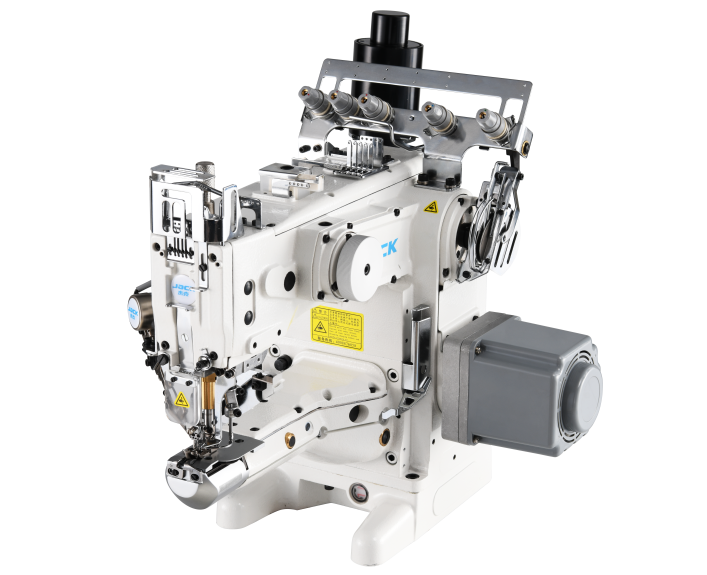

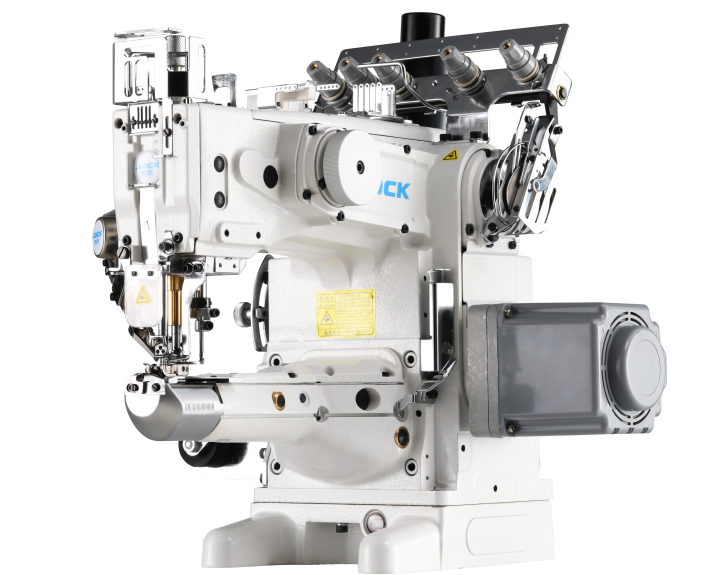

The Jack JK-1500C-UT is a computerized interlock (coverstitch) machine with a long straight cylinder arm, which Jack calls the straight cylinder type. The standard arm is 280 mm long and the L type is 380 mm, so sleeves, cuffs and necklines slide over the arm. It trims the thread and lifts the presser foot automatically and sews at up to 3,800 stitches per minute. Shirt, T-shirt and sportswear workshops in the UAE use it for hemming, strip attaching and seam joining on knit and stretch fabric.

Key features

• Long straight cylinder: 280 mm as standard, 380 mm on the L (super long) type, for sleeves and necklines
• Automatic thread trimmer and automatic presser foot lift after each seam
• 8 mm presser foot lift: even stitches from very thin stockings to the cross seams of sports trousers
• One machine sews cross seams, strip attaching, bottom hems and joining seams
• UT models trim electrically and have a wiper for the top decorative threads; UTL models trim pneumatically

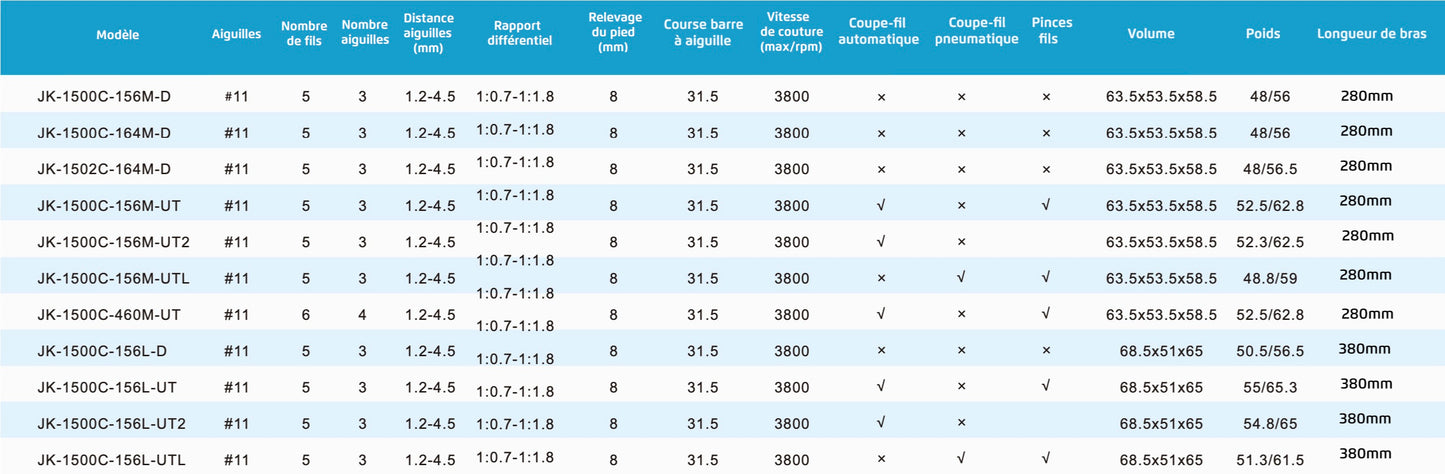

Specifications

Versions

• JK-1500C-156M-UT: normal arm, automatic trimmer and top thread wiper
• JK-1500C-156M-UTL: normal arm, pneumatic trimmer and top thread wiper
• JK-1500C-156M-UT2: normal arm, without upper thread trimming
• JK-1500C-460M-UT: 4 needles, 6 threads, automatic trimmer
• JK-1500C-156L: super long straight cylinder, 380 mm

Specifications from Jack's official JK-1500C brochure and product page. Ask us to confirm the exact sub-model before you order.
