A single needle lockstitch machine for light and medium fabric, with the motor built into the head.

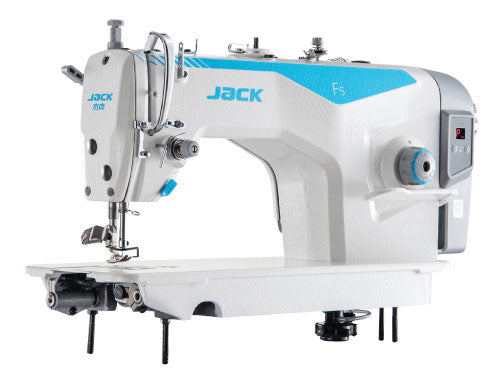

The Jack F5 is a 1-needle lockstitch machine. The motor sits inside the machine head rather than under the table, so there is no clutch motor and no drive belt to tension. Jack publishes the F5 in a standard build for light and medium material, in an H build for heavy material, and in longer stitch versions carrying the 7 suffix.
Jack states that the built-in energy saving motor uses up to 71% less energy than a clutch motor, and that a stand-by mode switches the machine off when it is left idle. Jack states that the control panel sets the sewing speed and the needle stop position, that a reset button restores the factory settings, and that stitches can be added with a dedicated button. Jack also states that a safety sensor disconnects the machine while service work is being done.
Key features
Direct drive motor built into the head, no clutch motor and no drive belt
Standard build for light and medium material, H build for heavy material
Control panel for speed, needle stop position and a one-key reset
Built-in LED lamp with a choice of light intensity
Jack states the motor uses up to 71% less energy than a clutch motor
Jack states a safety sensor disconnects the machine during service work
Specification published by Jack
Model
Needle
Threads
Max stitch length (mm)
Presser foot lift (mm)
Max sewing speed (spm)
Dimensions (mm)
Net / gross weight (kg)
F5
DB x 1, 11-18#
2
5
5 to 13
5,000
635 x 245 x 550
31.5 / 38.2
F5-7
DB x 1, 11-18#
2
7
5 to 13
3,500
635 x 245 x 550
31.5 / 38.2
F5-H
DP x 5, 18-21#
2
5
5 to 13
3,500
635 x 245 x 550
31.5 / 38.2
F5-H-7
DP x 5, 18-21#
2
7
5 to 13
3,500
635 x 245 x 550
31.5 / 38.2
F5-HL-7
DP x 5, 18-21#
2
7
5 to 13
3,500
635 x 245 x 550
31.5 / 38.2
Specification table published by Jack for the F5 series. Jack describes the presser foot lift as 5 mm by hand and 13 mm by pedal. Ask us which build suits the fabric you sew, and ask us to confirm the current specification, before you order.
Al Borj Machinery is Sharjah's authorised Jack distributor. We deliver, install, train your operators and service the machine across the UAE, Saudi Arabia and the wider GCC.
