GBOSGN1080CCD Camera Laser Cutter for Patches and Woven Labels

Also listed as GN1080, GN 1080CCD, GN-1080CCD, GBOS 1080 and GN1080 CCD

A camera-oriented CO2 laser cutter for sheets of woven labels and embroidery patches. A camera reads the shape on the sheet and the laser follows it, so each piece is cut to its own edge.

Built for Embroidery, laser and printing shopsGarment factories

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

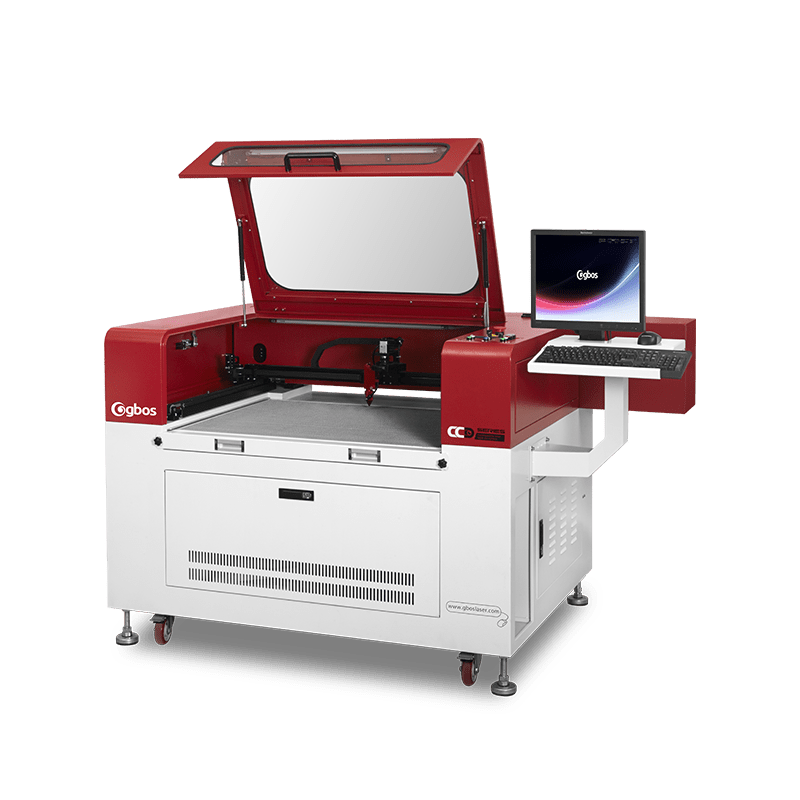

GBOS GN1080CCD camera laser cutting machine
  • 850 x 600mmWorking area
  • 90WLaser power
  • 1.3MPCamera
  • 280kgWeight
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The GN1080CCD up close

1 photo · tap to enlarge

The GBOS GN1080CCD in 30 seconds

What it is

A camera-oriented CO2 laser cutting machine with an 850 mm x 600 mm working area and a 90 W laser.

Who it's for

Embroidery shops and label makers in the UAE, Saudi Arabia and the wider GCC that cut patches and woven badges.

Why this model

Choose it to cut patches and labels to their own stitched or printed edge. GBOS lists sheet woven labels and sheet embroidery patches as its materials.

Setting up a factory line with the GN1080CCD

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the GN1080CCD does on a factory floor

GBOS GN1080CCD camera CO2 laser cutting machine

Camera positioning

The cut follows the shape on the sheet

GBOS states the camera is 1.3 million pixels and catches any shape of label at any angle, with a CCD VisionScan identifying range of about 150 mm x 120 mm.

On the factory floorBecause the camera finds each piece wherever it sits on the sheet, the laser cuts to its own edge and the sheet does not have to be placed at a fixed position.

GBOS GN1080CCD camera CO2 laser cutting machine

Cut quality

No burn and no yellow edge

GBOS states the machine cuts with no burn and no yellow edge, and identifies defects automatically.

On the factory floorAs GBOS states it, the label edge stays free of burn marks and yellowing, so the finished label looks clean.

GBOS GN1080CCD camera CO2 laser cutting machine

Options and counting

Auto feeding and automatic count

GBOS states that full auto feeding, dual platform switching and edge reading software are options, and that the machine counts cut output automatically.

On the factory floorAuto feeding keeps the machine running between sheets, and the automatic count tells you how many pieces were cut.

  • Tested on your artwork

    Send us a sheet of your patches or labels and we will test the cut. Output per hour depends on the patch size, the sheet layout and the backing.

GBOS GN1080CCD specifications

Laser

Working area850 mm x 600 mm
Laser power90 W
Gross power1100 W
Power supply220 V / 10 A, 50 Hz or 60 Hz

Machine

Dimensions1910 mm x 1090 mm x 1100 mm
Overall weight280 kg
Camera1.3 million pixels (as stated by GBOS)
File formatsPLT, DXF (Windows 10 or 11)

Specification published by GBOS.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)

Questions about the GBOS GN1080CCD

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the GN1080CCD the same as the GN1080?

Yes. GN1080CCD is the full GBOS model name, and CCD refers to its camera positioning.

What does the camera do?

It reads the shape of each patch or label on the sheet, and the laser follows it. GBOS states it catches any shape of label at any angle.

How many patches can it cut an hour?

That depends on the patch size, the sheet layout and the backing, so we work the number with you on your own artwork.

What is the price of the GBOS GN1080CCD in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the GBOS GN1080CCD and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the GBOS GN1080CCD before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.
