FKGroupUltracut-ML Single Ply Automatic Cutting System

Also listed as Ultracut ML, UltracutML, Ultracut-ML and FK Ultracut

A single ply automatic cutting system with an oscillating blade, for leather, technical fabric and composite parts. Suction holds the material, so FK Group states it can be cut without plastic film.

Built for Industrial cutting machinesTechnical textilesAutomotive interiors

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

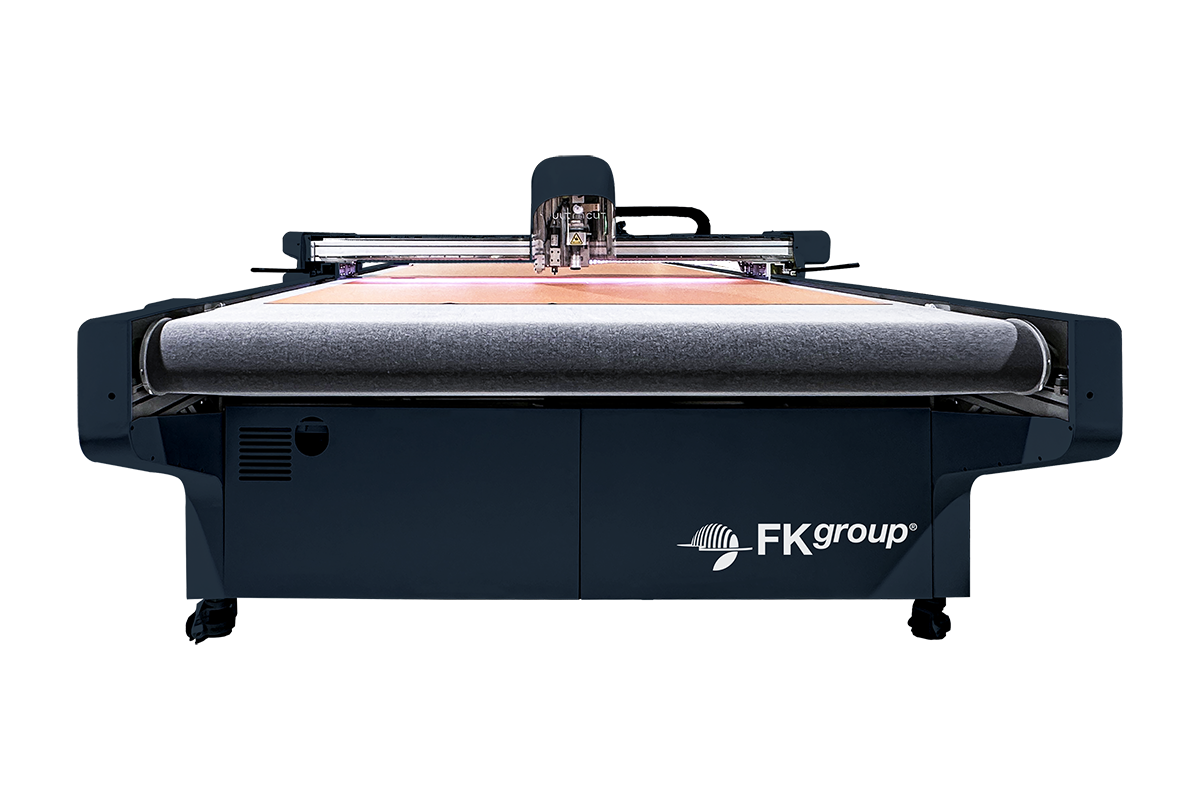

FK Group Ultracut-ML single ply automatic cutting system, front view
  • 132m/minCutting speed, maximum
  • 0.05mmAccuracy, plus or minus
  • 18,000rpmOscillating blade, maximum
  • 20mmCutting thickness, maximum
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The Ultracut-ML up close

1 photo · tap to enlarge

The FK Group Ultracut-ML in 30 seconds

What it is

FK Group's Ultracut-ML is a single ply automatic cutting system with an oscillating blade and four working areas from 120 x 150 cm to 190 x 250 cm.

Who it's for

Factories in the UAE, the GCC and Africa that cut leather, technical fabric or composite parts one ply at a time.

Why this model

Choose it for accuracy on single plies: FK Group states plus or minus 0.05 mm, a speed of 132 m per minute and an acceleration of 8 m per second squared.

Setting up a factory line with the Ultracut-ML

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the Ultracut-ML does on a factory floor

FK Group Ultracut-ML single ply automatic cutting system

Oscillating blade

Blade running to 18,000 rpm

FK Group fits an oscillating blade with a maximum speed of 18,000 rpm and a maximum cutting thickness of 20 mm.

On the factory floorThe blade oscillates at high speed, so it can cut a single ply of thick material cleanly in one pass.

FK Group Ultracut-ML single ply automatic cutting system

Suction

Cut without plastic film

FK Group states that the homogenous suction is designed so material can be cut without plastic film over it.

On the factory floorBecause no plastic film is needed, there is no film to lay and remove for each ply, so material is cut straight from the roll.

FK Group Ultracut-ML single ply automatic cutting system

Accuracy

Plus or minus 0.05 mm

FK Group publishes a cutting accuracy of plus or minus 0.05 mm, a maximum cutting speed of 132 m per minute and a maximum acceleration of 8 m per second squared.

On the factory floorThe published accuracy keeps part sizes consistent, so parts match when they reach the assembly line.

  • Four working areas

    120 x 150, 150 x 250, 170 x 250 and 190 x 250 cm. Send us your part drawing and material and we quote the right one.

FK Group Ultracut-ML specifications

Cutting

TypeSingle ply automatic cutting system
Maximum cutting speed132 m per minute
Maximum acceleration8 m per second squared
Cutting accuracyPlus or minus 0.05 mm (FK Group states)
Maximum oscillating blade speed18,000 rpm
Maximum cutting thickness20 mm
Working areas120 x 150, 150 x 250, 170 x 250 and 190 x 250 cm

Size and power

Overall dimensions286 to 386 cm long, 199 to 269 cm wide, 130.1 cm high
Weight2000 kg
Installed power18 kW
Average consumption13 kW
Power supply400 V plus or minus 10 percent, 50 to 60 Hz
Compressed air300 Nl per minute at 8 bar
StandardsCE UNI EN 292/1, 292/2, 349 and 294, noise under 85 dB

Figures as published by FK Group on its product page. FK Group may change specifications without notice.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)

Questions about the FK Group Ultracut-ML

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the Ultracut-ML the same as the Ultracut ML?

Yes. FK Group writes it Ultracut-ML, and people also type Ultracut ML or UltracutML. FK Group's product page is headed Ultracut.

Does it cut more than one ply at a time?

No. It is a single ply system. For lays of many plies, look at FK Group's conveyor systems such as the Universal Cutting System.

What does it need in air and power?

FK Group lists 18 kW installed power, 400 V plus or minus 10 percent at 50 to 60 Hz, and compressed air of 300 Nl per minute at 8 bar.

What is the price of the FK Group Ultracut-ML in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the FK Group Ultracut-ML and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the FK Group Ultracut-ML before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.

Talk to an FK Group specialist in our Sharjah showroom

Tell us your material, lay height and daily output. We go through the working area and options with you, and quote in AED. Bring your part drawings.
