Built for high-volume curtain factories that run automatic pleating lines.

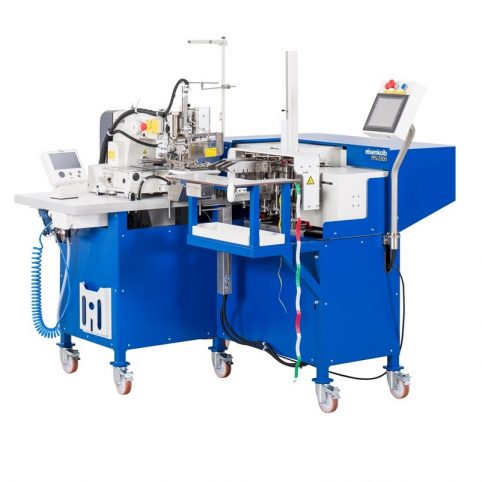

The Eisenkolb PPS-2300 is a fully automatic pleating machine. It sews double and triple curtain pleats, folds them, and inserts Microflex hooks with minimal operator input. UAE curtain factories and drapery workshops use it to keep large, repeat orders moving through production with less manual handling.

Key features

  • Brother X-Y feed lockstitch sewing machine with pre-programmed pleat settings

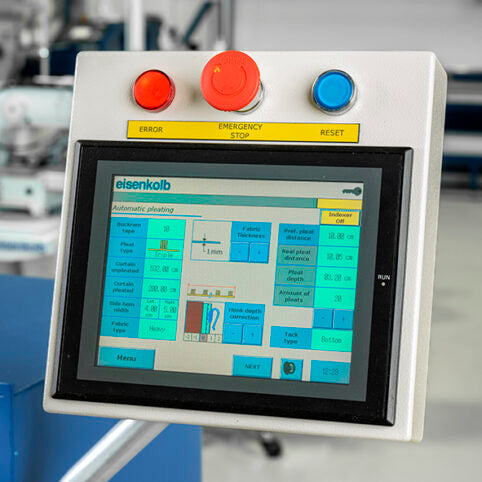

  • Touch screen interface with visual programming and remote support access
  • Pleat calculation module with patented positioning program
  • Computer-controlled folding station for automatic pleat folding, with L- or spot tack options
  • Fully automatic Microflex hook feed system with 100-hook container

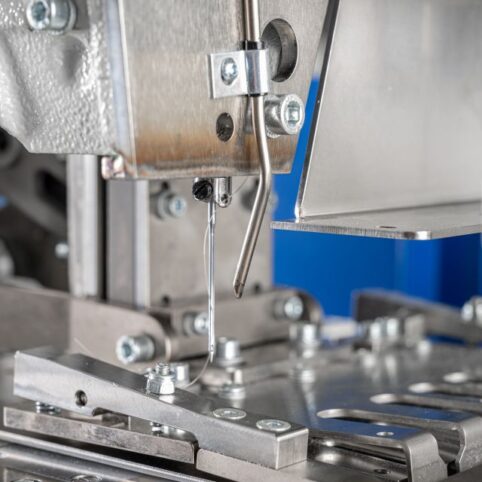

  • Needle cooling system for optimal fabric handling
  • Optional indexer for automatic fabric feeding and barcode interface

Specifications

Model Eisenkolb PPS-2300
Type Fully automatic double/triple pleating and Microflex hook insertion machine
Dimensions 160 x 70 cm
Power supply 220V, single phase, 1000W, 16A
Air supply 5 bar, 5 L per cycle
Pleat depth 17-40 mm
Pleat distance 80-188 mm
Maximum pleat thickness 18 mm
Hook height selection 5 mm increments
Production capacity Up to 200 pleats per hour (operator-dependent)
