Built for curtain workshops that sew pinch pleats every day.

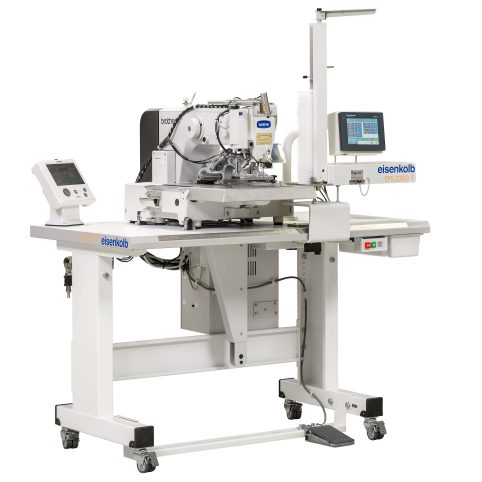

The Eisenkolb EPS-2200 is a semi-automatic pleating machine. It sews curtain pleats and inserts Microflex hooks in one step. The operator loads the fabric and the machine handles the stitching and hook insertion. UAE curtain makers and drapery workshops use it to cut down manual pleating work while keeping full control over each piece.

Key features

  • Brother X-Y feed lockstitch sewing machine, pre-programmed for pleats up to 12.5 cm high
  • Special tack program for manual folded double or triple pleats
  • Nexio touch screen for program, speed, and thread tension selection

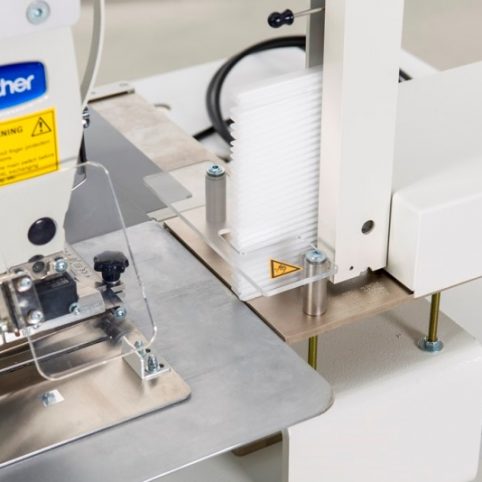

  • Fully automatic Microflex hook feed system with 100-hook container
  • Hook height selection in 5 mm increments

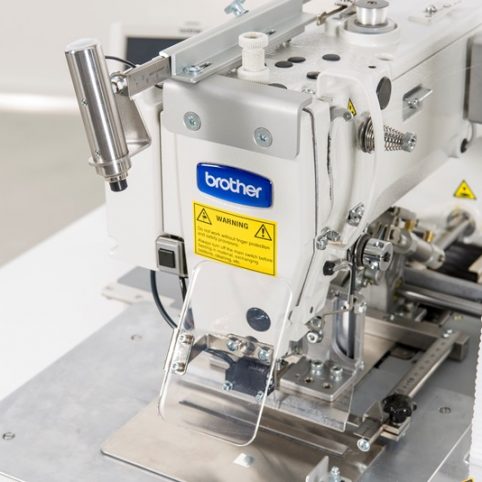

  • Low-power alignment laser to guide pleat spacing
  • Adjustable pleat guide, with optional pleat calculation module

Specifications

Model Eisenkolb EPS-2200
Type Semi-automatic single pleating and Microflex hook insertion machine
Dimensions 120 x 70 cm
Power supply 220V, single phase, 600W, 16A
Air supply 5 bar, 0.8 L per cycle
Pleat depth 20-140 mm
Pleat distance 65-185 mm
Maximum pleat thickness 18 mm
Hook height selection 5 mm increments
Production capacity Up to 250 pleats per hour (operator-dependent)
