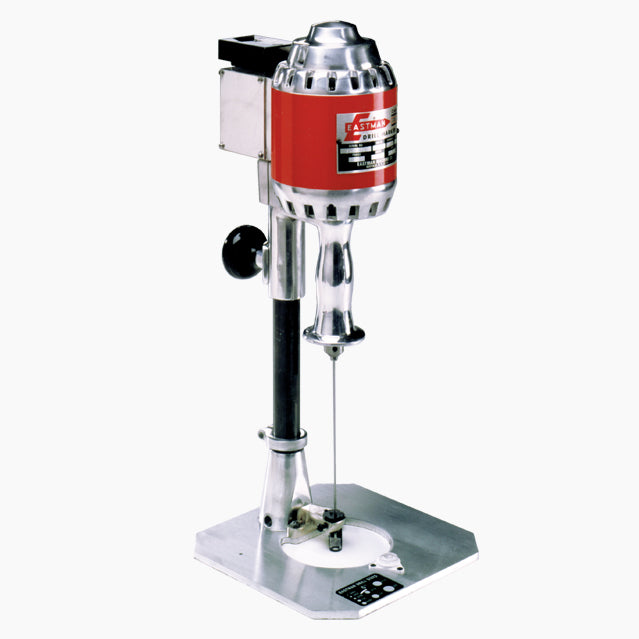

Eastman CD3, Cloth Drill Marker

Eastman CD3, Cloth Drill Marker

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Built for cutting rooms that mark fabric layers by hand.

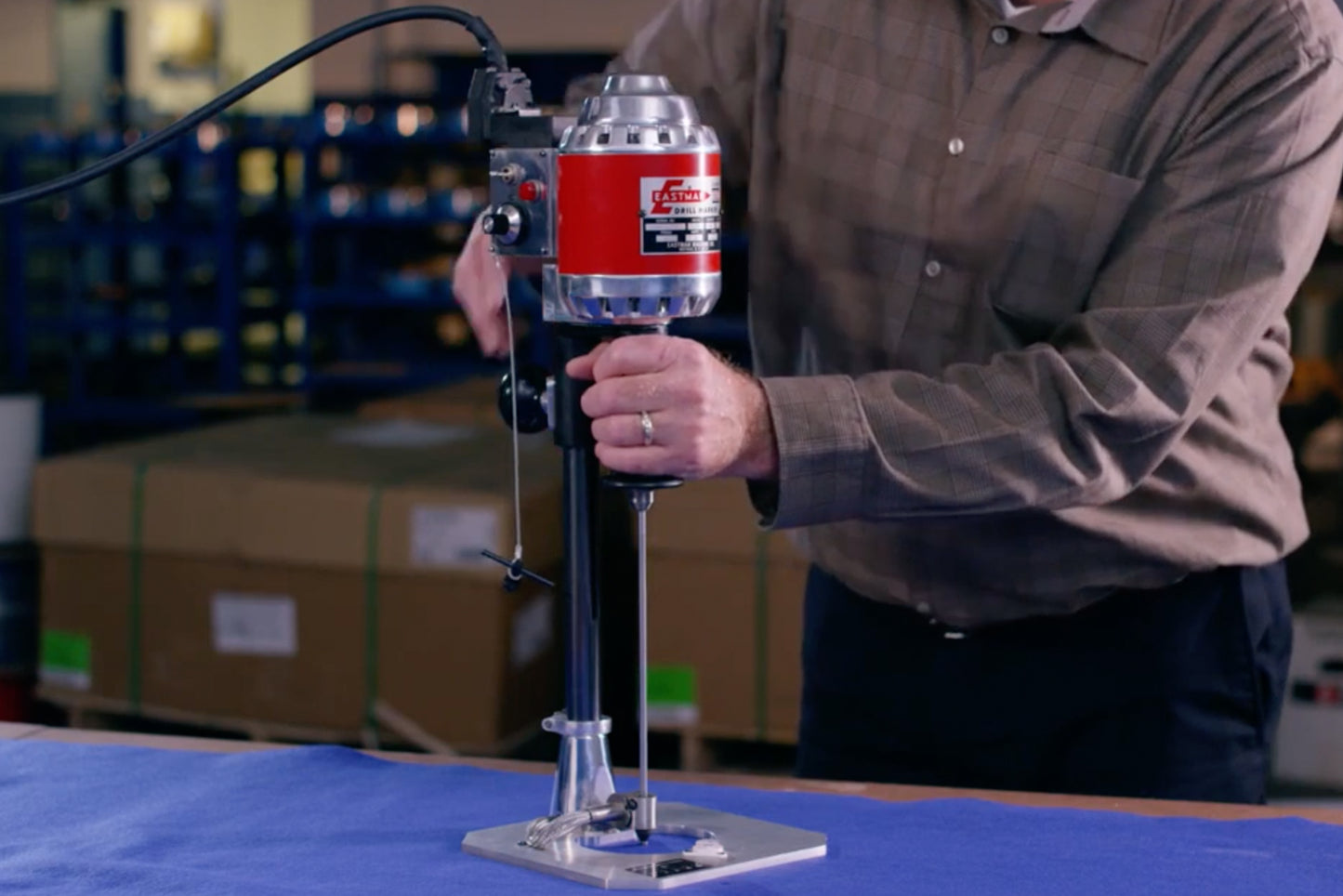

The Eastman CD3 drills clean holes through stacks of fabric. Use it to mark buttonholes, darts, pockets, and other placement points. A wide square baseplate keeps thick or quilted spreads flat and steady while you work. An optional heated head (CD3H) seals the edges of synthetic fabrics as it drills.

Key features

  • Drills through many layers of fabric in one pass
  • Large square baseplate reduces distortion on bulky or quilted spreads
  • Telescoping drive shaft for smooth, steady drilling
  • Choice of drill tips: standard taper point, diamond point, open end awl, closed awl, or PTFE coated
  • Optional heated head (CD3H) seals synthetic fabric edges as it drills
  • Available in 6 in, 8 in, or 11-11.5 in drilling depth

Specifications

Drilling depth 6 in, 8 in, or 11-11.5 in (15.2-29.2 cm)
Drill diameter range 3/64 in to 3/8 in (1.19-9.52 mm)
Motor 110V 1-phase 0.20 hp, or 220V 1-phase/3-phase 0.34 hp, 50/60Hz
Weight Approx. 15 lb 12 oz - 18 lb (6.8-8.2 kg) depending on model
Drill tip options Standard taper point (standard); diamond point, open end awl, closed awl, PTFE coated (optional)
