EastmanCardinal567 Super-Duty Round-Knife Cutting Machine

Also listed as 567, Cardinal 567, Eastman 567 and Super Cardinal

Eastman's most powerful round-knife cutter, for thick stacks of heavy fabric. It uses the same high-torque motor as the Brute straight knife, so it keeps cutting where a standard round knife stalls.

Built for Cutting roomsUniform factoriesHome textile and furniture makers

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

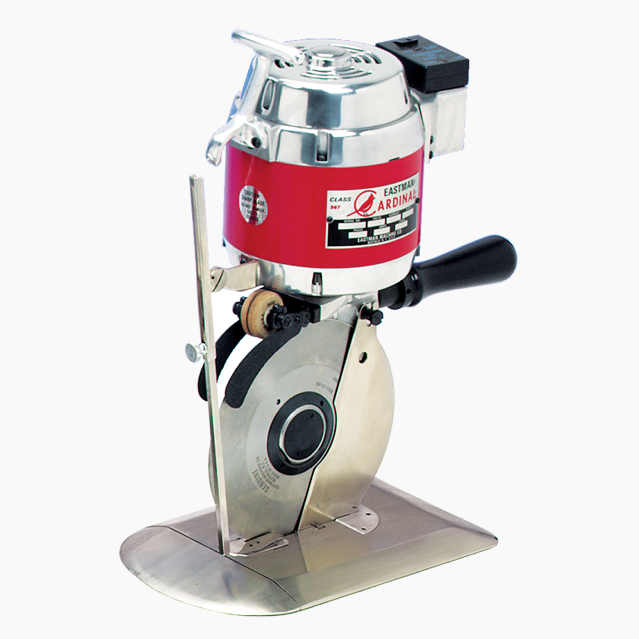

Eastman Cardinal 567 super-duty round-knife cutting machine
  • 6 / 7.5inBlade sizes
  • 3.25 / 4.75inCutting capacity
  • 1.25 / 2.2hp1-phase / 3-phase
  • 16.3kgWeight
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

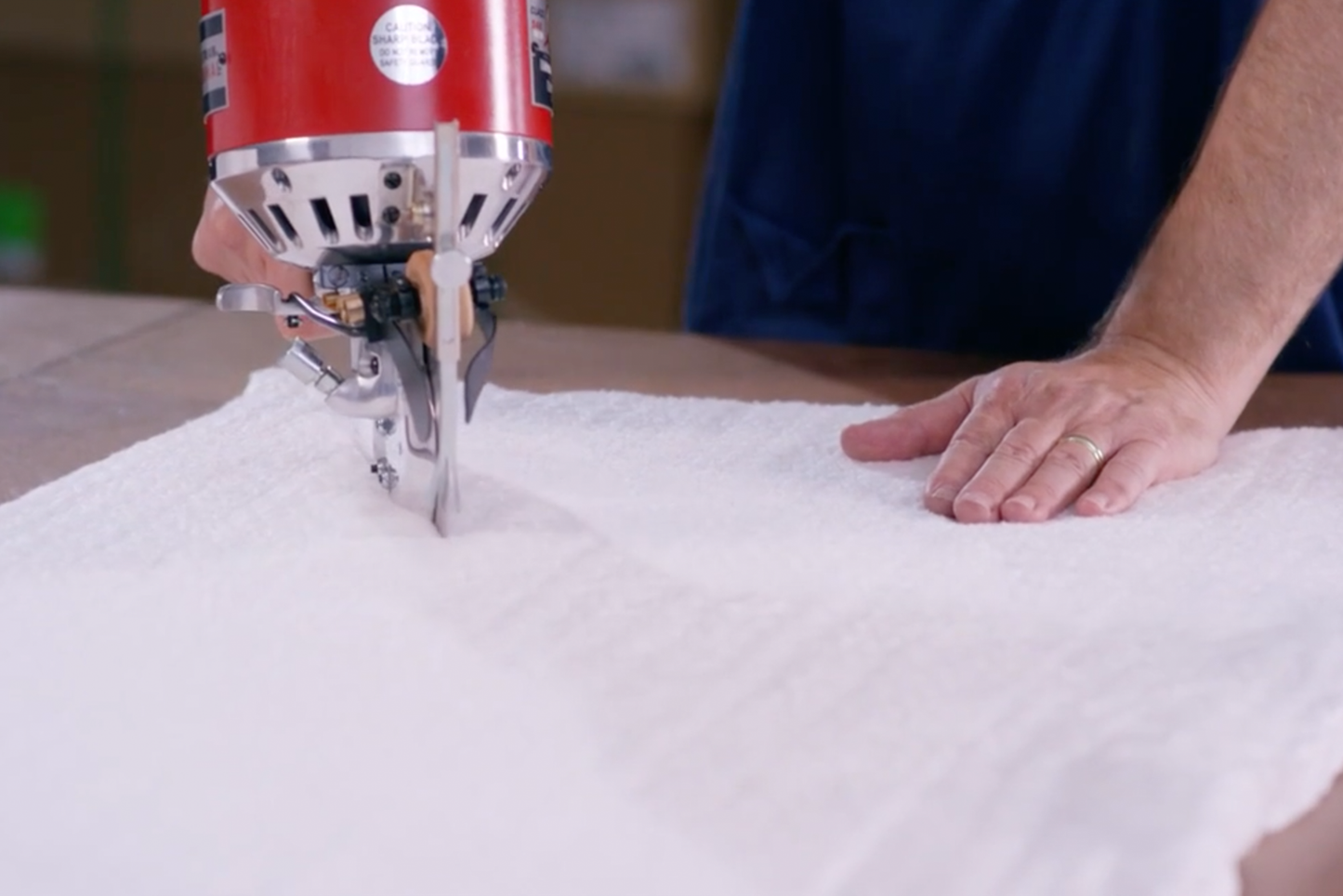

The Cardinal 567 up close

2 photos · tap to enlarge

The Eastman Cardinal 567 in 30 seconds

What it is

A super-duty round-knife cutting machine with a high-torque motor, a 6 in or 7.5 in blade and a built-in sharpener stone.

Who it's for

Workwear, uniform and upholstery cutting rooms in the UAE, the GCC and Africa that cut thick stacks of heavy fabric every day.

Why this model

Choose it when the standard Cardinal 548 is not strong enough for the stack. The 567 has the motor of the Brute straight knife and a heavier frame for continuous cutting.

Setting up a factory line with the Cardinal 567

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the Cardinal 567 does on a factory floor

Eastman Cardinal 567, Super-Duty Round-Knife Cutting Machine 7.5"

High-torque motor

The Brute motor on a round knife

The motor is shared with Eastman's Brute straight-knife platform: 1.25 hp on 1-phase and 2.2 hp on 3-phase. A dual-speed motor is optional.

On the factory floorThe motor has the torque to keep the blade turning through tall stacks of heavy fabric, so it does not stall mid-cut.

Eastman Cardinal 567, Super-Duty Round-Knife Cutting Machine 7.5"

Larger blades

Up to 4.75 in of cutting capacity

A 6 in blade cuts 3.25 in and a 7.5 in blade cuts 4.75 in.

On the factory floorThe 7.5 in blade reaches through a taller lay in one pass, so fewer stacks are split to be cut.

Eastman Cardinal 567, Super-Duty Round-Knife Cutting Machine 7.5"

Heavier frame

Built for continuous, high-volume cutting

The frame is heavier than the standard Cardinal, at 36 lb (16.3 kg), with a built-in sharpener stone.

On the factory floorThe heavier frame carries the stronger motor through long runs, and the built-in stone keeps the edge consistent between blade changes.

  • Sharpener options

    A 120-grit stone is standard, with 150 medium or 220 fine optional.

  • Voltage choice

    110 V or 220 V 1-phase, or 380 V 3-phase, at 50 or 60 Hz.

Eastman Cardinal 567 specifications

Cutting

ModelEastman Cardinal 567 (Super-Duty)
Blade size6 in (15.2 cm) or 7.5 in (19.1 cm)
Cutting capacity3.25 in (8.26 cm) with 6 in blade; 4.75 in (12.07 cm) with 7.5 in blade
Sharpening system120-grit stone standard; 150 medium or 220 fine optional

Motor

Motor power1.25 hp (1-phase) or 2.2 hp (3-phase)
Motor speedHigh 3600/3000 rpm or low 1800/1500 rpm; dual-speed optional
Voltage110 V 1-phase, 220 V 1-phase, or 380 V 3-phase, 50/60 Hz
Weight36 lb (16.3 kg)

Figures as listed by Eastman. Ask us to confirm the current specification and options before you order.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)

Questions about the Eastman Cardinal 567

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the Cardinal 567 the same as the Eastman 567?

Yes. Cardinal is Eastman's round-knife line and 567 is the super-duty model, shown here with the 7.5 in blade option.

When should I choose the 567 over the Cardinal 548?

Choose the 567 when the stack is tall or the fabric heavy enough to stall the standard 548. The 567 gives up to 4.75 in of capacity against 3.5 in on the 548.

Does the Cardinal 567 come with a dual-speed motor?

Dual-speed is an option. The standard motor runs at high speed 3600/3000 rpm or low speed 1800/1500 rpm, depending on the version.

What is the price of the Eastman Cardinal 567 in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the Eastman Cardinal 567 and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the Eastman Cardinal 567 before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.
