Eastman627PMPlasticMaster Straight-Knife Plastic Cutting Machine

Also listed as 627PM, 627 PM, Plastic Master and Eastman Plastic Master

A heavy-duty straight-knife cutter for plastic and fusible materials such as PVC and cotton-backed vinyl. Its heat-reducing features and moistening attachment keep the cut edge from melting and fusing.

Built for Cutting roomsTechnical textile makers

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

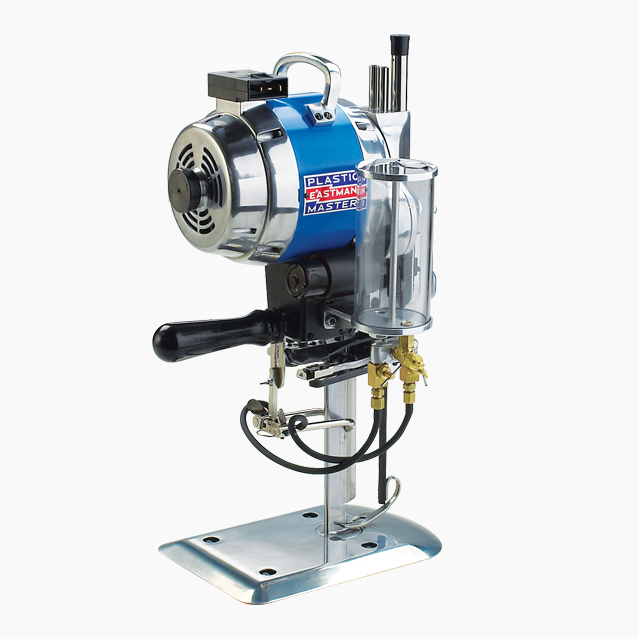

Eastman 627PM Plastic Master straight-knife plastic cutting machine
  • 6 / 8inBlade sizes
  • 4.5 / 6.5inCutting capacity
  • 0.65 / 0.93hp1-phase / 3-phase
  • 15.4kgWeight
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

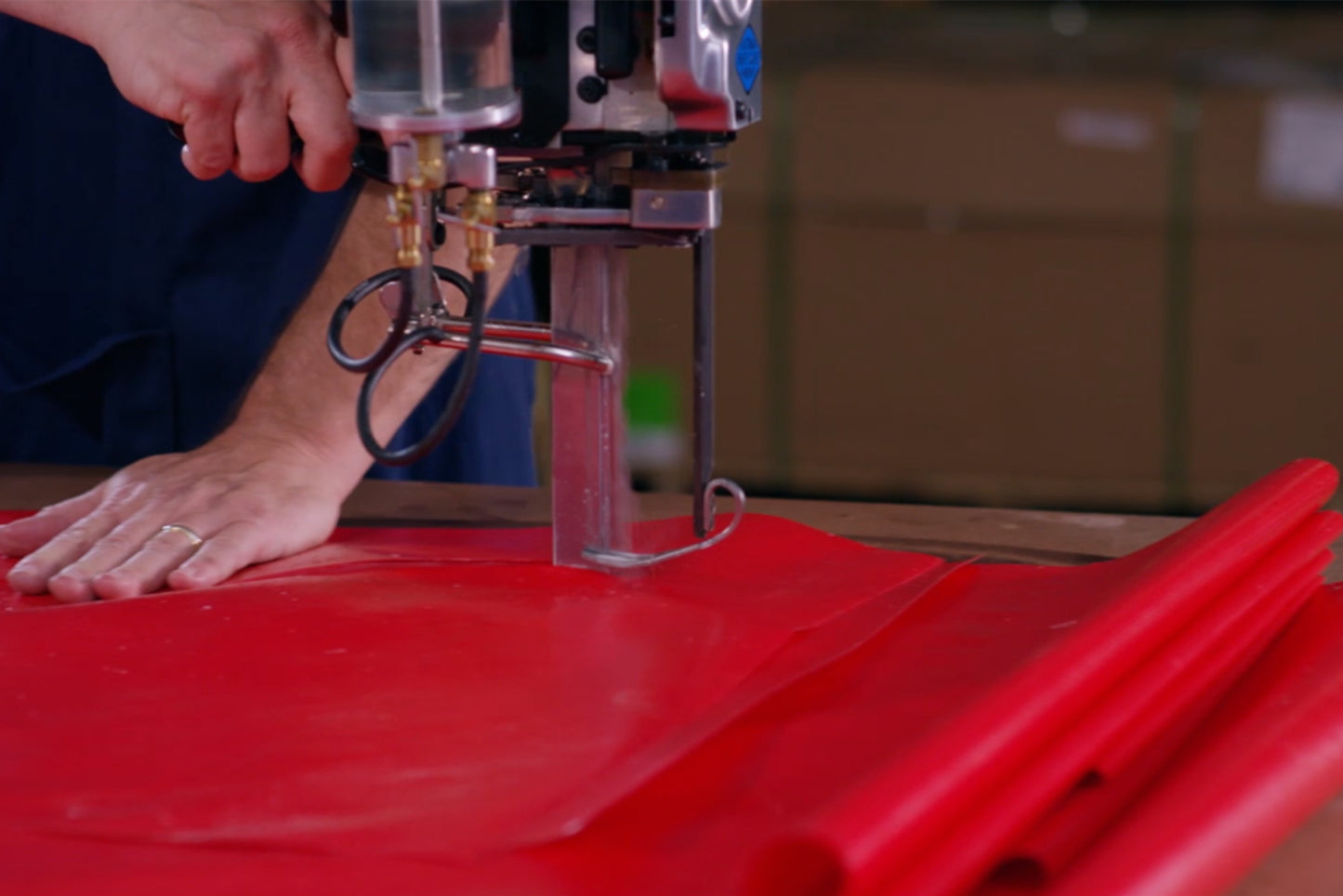

The 627PM Plastic Master up close

2 photos · tap to enlarge

The Eastman 627PM Plastic Master in 30 seconds

What it is

A heavy-duty straight-knife cutting machine for plastic and fusible materials, with a dual-speed motor, a short stroke and a moistening attachment.

Who it's for

Cutting rooms in the UAE, the GCC and Africa that cut PVC, vinyl and other fusible materials alongside fabric.

Why this model

Choose it when ordinary straight knives heat the material until the edge melts. Eastman lists the 627PM as the heavy-duty model; the standard model is the 629PM.

Setting up a factory line with the 627PM Plastic Master

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the 627PM Plastic Master does on a factory floor

Eastman 627PM Plastic Master, Straight-Knife Plastic Cutting Machine

Heat-reducing design

Cuts plastic without fusing the edge

Eastman lists a dual-speed motor, a short stroke and a wave-edge blade (optional) as the features that reduce heat at the cut.

On the factory floorLess heat builds up at the blade, so PVC and vinyl are not melted together at the cut edge and the pieces separate cleanly.

Eastman 627PM Plastic Master, Straight-Knife Plastic Cutting Machine

Moistening attachment

Wets the blade for hard-to-cut materials

The 627PM, Eastman's heavy-duty model, includes a moistening attachment.

On the factory floorMoisture at the blade cools the cut, so hard-to-cut materials give a cleaner edge.

Eastman 627PM Plastic Master, Straight-Knife Plastic Cutting Machine

Blade and stroke choice

Set up for your material and stack height

Blades come in 6 in or 8 in, with four stroke sizes from 1.125 in to 1.75 in. Carbon steel is standard; high-speed steel, PTFE-coated and wave-edge blades are options.

On the factory floorBecause blade size, stroke and blade material are chosen to suit the material and the ply height, one cutting room can match the machine to its own work.

  • Voltage choice

    110 V 1-phase, 220 V 1-phase or 3-phase, or 380 V 3-phase, at 50 or 60 Hz, so the motor can match the supply in your cutting room.

Eastman 627PM Plastic Master specifications

Cutting

Model627PM, heavy-duty with moistening attachment
Blade sizes6 in or 8 in
Cutting capacity4.5 in or 6.5 in, depending on blade
Stroke sizes1.125 in, 1.25 in, 1.5 in or 1.75 in
Blade materialCarbon steel standard; high-speed steel, PTFE-coated or wave-edge optional

Motor

Motor power0.65 hp (1-phase) or 0.93 hp (3-phase)
Voltage110 V 1-phase, 220 V 1-phase/3-phase, or 380 V 3-phase, 50/60 Hz
Weight34 lb (15.4 kg)

Figures as listed by Eastman. Ask us to confirm the current specification and options before you order.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)

Questions about the Eastman 627PM Plastic Master

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the 627PM the same as the Plastic Master?

Yes. The Eastman 627PM is sold as the Plastic Master. Eastman lists it as the heavy-duty model with a moistening attachment, and the 629PM as the standard model.

What material is the Plastic Master made for?

Plastic and fusible materials such as PVC and cotton-backed vinyl, which melt and fuse at the cut edge under an ordinary straight knife.

Which blade and stroke should I choose?

Blades are 6 in or 8 in, giving 4.5 in or 6.5 in of cutting capacity, with four stroke sizes up to 1.75 in. Send us your material and ply height and we will confirm the setup.

What is the price of the Eastman 627PM Plastic Master in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the Eastman 627PM Plastic Master and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the Eastman 627PM Plastic Master before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.
