Barudan BELY-II, 9-Needle Compact Bridge Embroidery Machine

Barudan BELY-II, 9-Needle Compact Bridge Embroidery Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

A compact multi-head machine built for workshops that need steady, high-quality output in a smaller footprint.

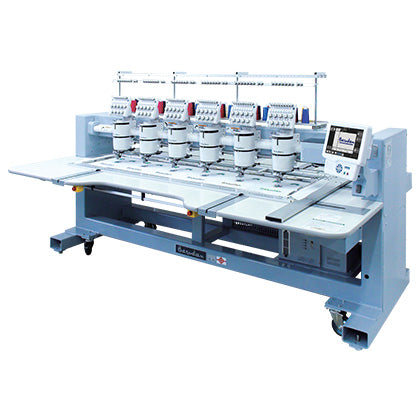

The Barudan BELY-II is a 9-needle compact bridge embroidery machine. It suits abaya and kandoora ateliers, uniform makers, and garment factories across the UAE and GCC that want multi-head production without a large-machine footprint. It handles garments, caps, shoes, and bags on one flat-bed platform. Servo-driven heads keep stitch quality consistent across long production runs.

Key features

  • 9-needle rotary head design, cultivated from Barudan's high-performance multi-head machines
  • Available in 4-head, 6-head, and 8-head configurations
  • High-quality MK6 trimmer cuts upper and lower bobbin thread at the same time
  • Frame centering and frame limit functions protect needles and frames
  • 12.1-inch LCD touchscreen (1280 x 800) for clear, simple operation
  • Design transfer by USB, Bluetooth, and LAN network
  • Matrix function supports badge and emblem production

Specifications

Spec Detail
Needles 9 per head
Head options 4, 6, or 8 heads
Max speed 200-1,000 spm
Embroidery field 450 x 300mm, 450 x 400mm, or 600 x 300mm (all models); 800 x 400/500mm on 6- and 8-head models
Stitch length 0.1-12.7mm
Memory 300 memory locations, 300 million stitch capacity
Display 12.1-inch LCD touchscreen, 1280 x 800
Connectivity LAN port, 3x USB ports
Max power consumption 0.5-0.55 kW
Request a quote

Get a price for the Barudan BELY-II, 9-Needle Compact Bridge Embroidery Machine

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts

FAQs about this machine

See all FAQs

Are the machines you supply genuine?

Yes. Al Borj is an authorised distributor for the brands we carry, so every machine is genuine and comes with full manufacturer support.

How do I choose the right machine for my factory?

Tell us what you make and your production target. Our team will study your needs and recommend the right machine, then support you with installation, training and after-sales service.
