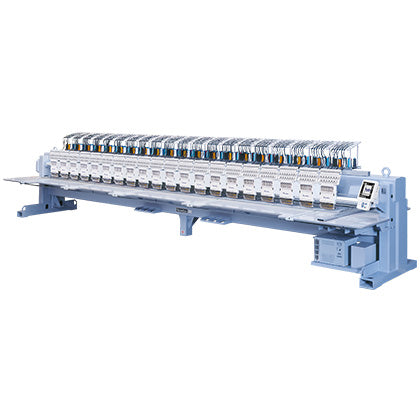

• Barudan BELS-S15, 15-Needle Multi-Head Embroidery Machine

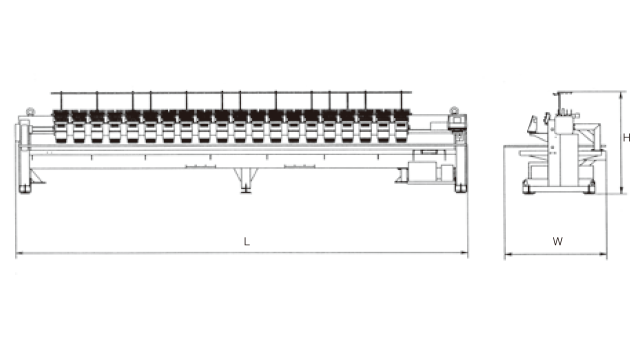

  • Barudan BELS-S15, 15-Needle Multi-Head Embroidery Machine specifications diagram
1 2

Barudan BELS-S15, 15-Needle Multi-Head Embroidery Machine

Barudan BELS-S15, 15-Needle Multi-Head Embroidery Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

The Barudan BELS-S15 is a 15-needle multi-head embroidery machine built for high-volume, multi-colour production.

Each head uses a slide-head design with 15 needles, so fewer thread changes are needed during a run. The machine comes in several head-count configurations, so a workshop can match the machine size to its output needs. It suits abaya and kandoora ateliers, uniform makers, and garment factories across the UAE and GCC that run long, multi-colour embroidery jobs.

Key features

  • Slide-head design with 15 needles per head, reducing thread changes during production
  • Available in multiple head configurations, including 12-head, 15-head, 18-head, and 20-head models
  • Servo-drive motors for high productivity and consistent stitch quality
  • MK6 trimmers cut the upper and lower bobbin thread at the same time
  • Double Field Function for continuous designs across the frame
  • 12.1-inch LCD touchscreen with LAN, USB, and Bluetooth connectivity
  • Memory for 300 designs, with capacity for up to 300 million stitches

Specifications

Spec Detail
Needles per head 15
Head configurations 12, 15, 18, and 20 heads (also available from 12 to 28 heads)
Max embroidery speed 200-1000 rpm
Stitch length 0.1-12.7 mm
Embroidery field, BELS-S1512 600×400/500 mm
Embroidery field, BELS-S1515 / S1518 800×400/500 mm
Embroidery field, BELS-S1520 450×350/350 mm (also 600×350/450 mm)
Power supply 1-phase AC200-240V or 3-phase AC200-415V
Request a quote

Get a price for the Barudan BELS-S15, 15-Needle Multi-Head Embroidery Machine

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts

FAQs about this machine

See all FAQs

Are the machines you supply genuine?

Yes. Al Borj is an authorised distributor for the brands we carry, so every machine is genuine and comes with full manufacturer support.

How do I choose the right machine for my factory?

Tell us what you make and your production target. Our team will study your needs and recommend the right machine, then support you with installation, training and after-sales service.
