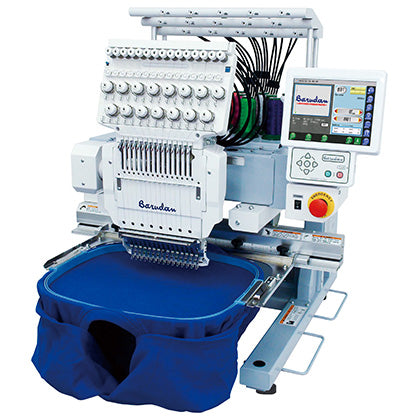

Barudan BEKT-S1501CBIII Single-Head 15-Needle Embroidery Machine
Also listed as BEKT S1501CBIII, BEKT-S1501CB3, BEKT-S1501CAII, BEKT-S1501CII, BEKT S1501 and BEXT-S1501CBII
Barudan's 15-needle head on its own, for samples, names, short runs and personalisation on caps, finished garments and flat work. It runs on a normal single-phase supply.
Built for Embroidery solutionsUniform makersAbaya and kandoora
Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.
- 15Needles
- 1,300Top speed, rpm
- 360mmWide cap design
- 1200Longest field, mm
- 5,000+factories supplied by Al Borj in the Middle East and Africa
The BEKT-S1501CBIII up close
9 photos · tap to enlargeThe Barudan BEKT-S1501CBIII in 30 seconds
What it is
A single-head 15-needle embroidery machine with a 360 × 500 mm tubular field, an 86 × 360 mm wide cap frame and frames for finished products up to 380 × 438 mm. This page also covers the compact CAII, the 1200 mm V1200 and the drop-table CII.
Who it's for
Uniform rooms, embroidery shops and personalisation studios in the UAE, the GCC, Ghana, Kenya and Ethiopia, and multi-head factories that need a machine for samples and names.
Why this model
Choose it for short runs and samples on caps and finished garments: it stitches at up to 1,300 rpm on tubular work and needs only a single-phase socket.
A single head beside your multi-heads
Many embroidery rooms run a BEKT next to their multi-heads for samples, names and rush orders. We set it up with the frames your products need.
- 01
Embroidery room assessment
We look at your designs, products and monthly pieces, then recommend heads, needles, field size and frames.
- 02
One quotation
Machines, frames, delivery and installation in one AED quotation.
- 03
Installation and training
Our technicians install, level and test-run every machine, complete Barudan's installation check sheet and train your operators.
- 04
Parts and maintenance
Genuine Barudan parts from stock in Sharjah and annual maintenance contracts for the whole room.
What the BEKT-S1501CBIII does on a factory floor
Name drop
Embroider each name in a list on its own
Name drop separates the names in a multiple-name design, so each one can be viewed and embroidered on its own. The name list shows every name with its stitch count, and the thumbnail list lets the operator pick the next one.
On the factory floorName drop separates the names in one design, so the operator picks each name from the list and every team kit or staff uniform carries its own name.
New trimmer and narrow cylinder arm
Deeper into finished products
A smaller-diameter cylinder arm and the new trimmer let the BEKT-S1501CBIII embroider deeper into confined areas of finished products. The new tensioner makes thread tension easier to set and thread breaks more reliable to detect.
On the factory floorThe smaller cylinder arm and new trimmer reach deeper into confined areas, so designs go on finished products a wider arm would not fit into.
Laser pointer and LED light
See where the design will land
A laser pointer marks the needle position on the garment, and an LED back light lights the embroidery area under the head. The automat has an 8.4 inch touch screen and holds 100 designs and 70 million stitches.
On the factory floorThe laser pointer marks the needle position on the garment and the LED light shows the area, so the operator checks the logo position before stitching starts.
BEKT-S1501CAII
The most compact: 250 × 400 mm, 1,200 rpm, 73 kg, on a bench or the optional steel stand.
BEKT-S1501CBIII V1200
A 360 × 1200 mm field with extension tables, for banners and flags.
BEKT-S1501CII
The largest single-head field, 450 × 520 mm, on a drop-table frame.
All four run on single-phase 100-240 V at 0.225 kW, with stitch length 0.1-12.7 mm.

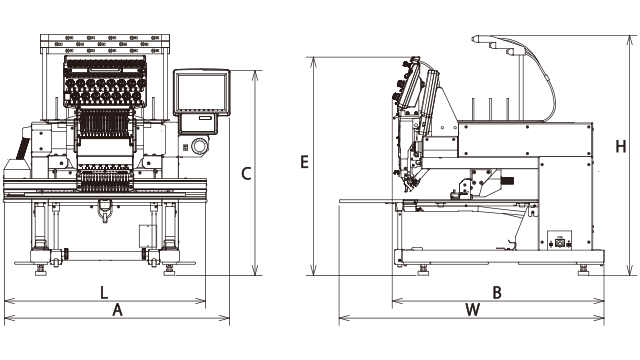

Barudan BEKT-S1501CBIII specifications
Models
| BEKT-S1501CAII | single head, 15 needles, 250 × 400 mm, up to 1,200 rpm, cap frame 72 × 360 mm, most compact, 73 kg |
|---|---|
| BEKT-S1501CBIII | single head, 15 needles, 360 × 500 mm, up to 1,300 rpm, cap frame 86 × 360 mm |
| BEKT-S1501CBIII V1200 | single head, 15 needles, 360 × 1200 mm, up to 1,000 rpm, cap frame 86 × 360 mm, for banners and flags |
| BEKT-S1501CII | single head, 15 needles, 450 × 520 mm, up to 1,300 rpm, cap frame 79 × 360 mm |
Stitching and frames
| Stitch length | 0.1-12.7 mm |
|---|---|
| Cap frames | 72 to 86 × 360 mm, by model |
Automat, power and equipment
| Earlier models | BEKT-S1501CB (first generation); BEXT-S1501CBII and BEXT-S1501CAII (X series); BEVT-Z1501CB, BEVT-Z1501CBII and BEVT-Z1501C (V series) |
|---|---|
| Automat | 8.4 inch touch screen |
| Memory | 100 designs, 70 million stitches |
| Power supply | 1φ 100-240 V, 0.225 kW |
| Features | Name drop, laser pointer, LED back light, new tensioner (name drop and new trimmer not on the CAII) |
Figures from Barudan's 2026 specification sheets and the Barudan catalogue 2026-27. Embroidery area is the maximum pantograph movement; the frame used can limit it.
Included with every Al Borj machine
- Delivery across the UAE and the wider Middle East and Africa
- Installation at your factory
- Operator training on site
- Genuine spare parts
- Annual maintenance contracts (AMC)
Barudan embroidery machines side by side
| Feature |
 |
 |
 |
This machine
 |
|---|---|---|---|---|
| Best for | Caps and garments in pairs | Caps, polo shirts and finished garments | Uniform logos and smaller production runs | Samples, names and short runs |
| Heads | 2 | 2-8 | 4-12 | 1 |
| Needles | 15 | 15 | 9 or 15 | 15 |
| Largest field | 450 × 380 mm a head | 450 × 520 mm | 800 × 400 mm | 450 × 520 mm (V1200: 360 × 1200) |
| Caps | Yes, 79 × 360 mm frame | Yes, 86 × 360 mm frame | No | Yes, 72-86 × 360 mm frame |
| Top speed | 1,100 rpm | 1,100 rpm | 1,000 rpm | 1,300 rpm |
| Link | View BEKT-S1502CII | View BELY-CII | View BELY-II | You are here |
Questions about the Barudan BEKT-S1501CBIII
Anything else, ask us on WhatsApp. We usually reply within one working day.
Ask on WhatsAppIs the BEKT-S1501CBIII the same as the BEKT-S1501CB3?
Yes. CBIII and CB3 are the same third-generation BEKT-S1501CB single head. The BEKT continues in 2026 with its 8.4 inch automat while Barudan's multi-heads move to the L series.
What is the price of a Barudan BEKT-S1501CBIII in the UAE?
It depends on the model, the number of heads, the embroidery field and the frames. Send us your products and monthly pieces on WhatsApp or through the enquiry form and we send an AED quotation for the machine, frames, delivery and installation.
What is the price of the Barudan BEKT-S1501CBIII in Ghana, Kenya or Ethiopia?
It depends on the model, the frames and the delivery to your city, for example Accra, Nairobi or Addis Ababa. Send us your products and your city on WhatsApp and we reply within one working day with an AED quotation for the machine, frames, delivery and installation.
Which older Barudan single head does the BEKT-S1501CBIII replace?
It is the third generation of the BEKT-S1501CB. Before the BEKT, Barudan's single heads were the BEXT, such as the BEXT-S1501CBII and BEXT-S1501CAII, and before those the BEVT-Z1501CB. If you run one of these, send us the model and serial number and we will confirm parts and service.
Which BEKT single head should I choose?
The CAII is the most compact (250 × 400 mm). The CBIII is the all-rounder (360 × 500 mm, 1,300 rpm). The V1200 adds a 360 × 1200 mm field for banners and flags. The CII has the largest field, 450 × 520 mm, on a drop-table frame.
Does the BEKT embroider caps and hats?
Yes. The CBIII and V1200 take an 86 × 360 mm wide cap frame, the CII a 79 × 360 mm frame and the CAII a 72 × 360 mm frame. Caps run at up to 1,000 rpm.
What power does a Barudan single head need?
A single-phase 100-240 V supply; it draws 0.225 kW. No three-phase connection is needed.
Do you install the machine and train our operators?
Yes. Our technicians install, level and test-run every Barudan we supply, complete Barudan's installation check sheet and train your operators on the automat, hooping, thread tension and daily care. Barudan's warranty is handled by our service team with Barudan's technical support in Singapore and Japan.
Where can I talk to a Barudan specialist?
At our showroom: Showroom #4, Al Borj Showrooms, Industrial Area 4, Sharjah. Bring your designs and products; we help you choose the model and frames for them.
Do you supply outside the UAE?
Yes. Outside the UAE we supply Barudan machines to Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Yemen and Iraq. In Africa we supply Kenya, Ethiopia, Tanzania, Uganda, Ghana, Benin, Togo, Ivory Coast, Senegal, Mali, Mauritania, Tunisia and Libya, with our own office in Accra, Ghana. Our technicians install the machine and train your operators.
