Merrow Catalogue and specifications
Merrow 12-E catalogue (PDF)
Merrow's sheet for the 12-E, a single-thread machine that joins two pieces edge to edge with a 5/8 inch flat butted seam. Mills and technical textile plants use it on turf, carpet, upholstery, composites, fibreglass, non-wovens and wovens, where a bulky seam would catch further down the line.
1 page, Merrow Sewing Machine Company catalogue, Al Borj edition, 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.
What the Merrow 12-E catalogue covers
One page in English with the 12-E heavy duty butt seaming machine and its specifications: operating speed, stitch width, stitch range, Federal stitch type 501 and one thread, with the front and back of the seam.
Merrow offers it for mounting on a table or on an automated rail, and with a rotary cutting system. Al Borj supplies, installs and services the 12-E from Sharjah and Accra.
Machine type: Heavy duty single-thread butt seaming machine.
- Operating speed
- 1600 RPM
- Stitch width
- 5/8 inch
- Stitch range
- 4 to 12 SPI
- Federal stitch type
- 501
- Number of threads
- 1
Figures from the Merrow catalogue.

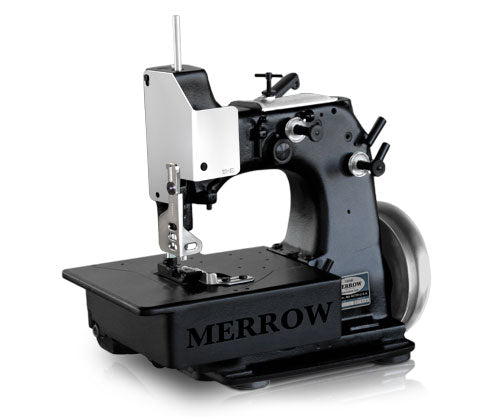

Merrow 12-E, Heavy Duty Joining Machine
