Hashima Catalogue and specifications
Hashima Heat Transfer Press Series catalogue (PDF)
Covers HP-10P and HP-4536A-12
Hashima's catalogue for its heat transfer press series, including the HP-10P label press and the HP-4536A-12 large-plate press. Garment and uniform finishing lines use them to apply labels, badges and transfers at a set heat, pressure and time.
2 pages, Hashima Co., Ltd. catalogue, Al Borj edition, 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.
What the Hashima Heat Transfer Press Series catalogue covers
Two pages in Japanese and English: the front spread with the HP-4536A(-T), the HSP-5400 and the series, then the HP-84N, HP-54N, HP-10P, HP-10RP, HP-16LP and HP-4536A-W with their specifications.
The HP-10P presses a 100 × 100 mm label at one touch; the HP-4536A-12 presses across a 450 × 360 mm plate with horizontal pressure. Al Borj supplies, installs and services both from Sharjah and Accra.
Machine type: Fully automatic heat transfer presses.
- Plate size
- 100 mm x 100 mm (HP-10P); 450 mm x 360 mm (HP-4536A-12)
- Max temperature
- 195°C
- Heater output
- 220 W (HP-10P); 2,500 W (HP-4536A-12)
- Max pressure
- 1.31 kg/cm² (HP-10P); 0.57 kg/cm² (HP-4536A-12)
- Weight
- 25 kg (HP-10P); 90 kg (HP-4536A-12)
Figures from the Hashima catalogue.
Pages from the Hashima Heat Transfer Press Series catalogue
Download the Hashima Heat Transfer Press Series catalogue (PDF, 4.3 MB)

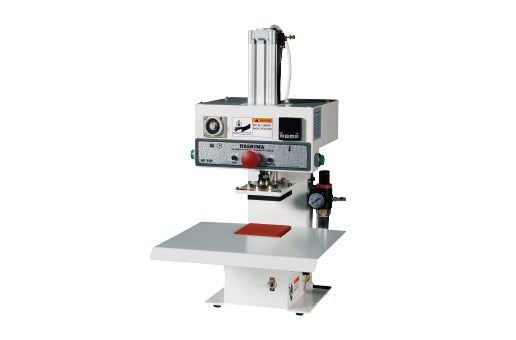

Hashima HP-10P, Fully Automatic Heat Transfer Press

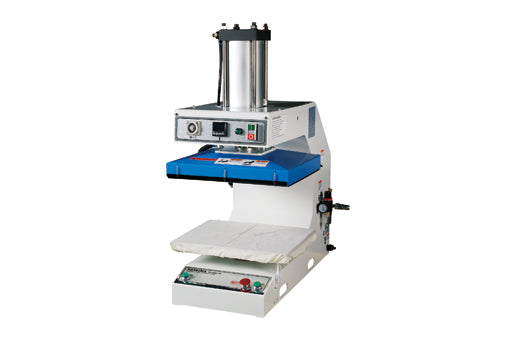

Hashima HP-4536A-12, Fully Automatic Heat Transfer Press
